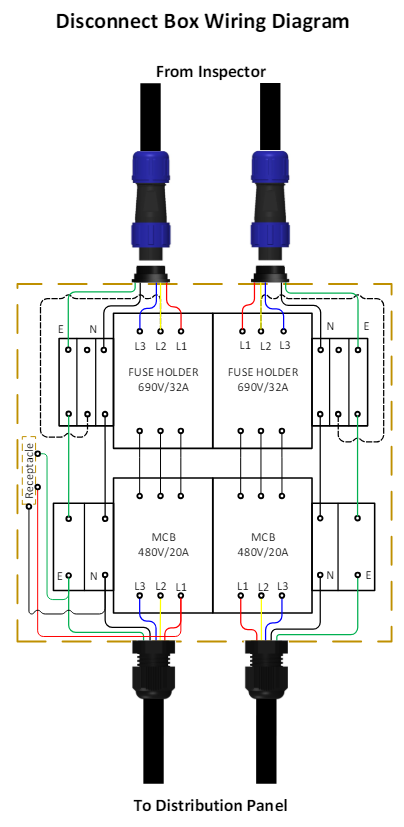

An electrical disconnect box is a crucial component in any electrical system, as it provides a safe and efficient way to isolate power to a connected device or equipment. This disconnect box is designed with two isolation stages to protect both the inspector and the connected device, ensuring maximum safety during maintenance or repairs. Additionally, this particular disconnect box can be configured for electrical connection in either star or delta by using jumpers.




C:\Users\osama.gohar\Desktop\wir.png                       C:\Users\osama.gohar\Desktop\disconnectbox.png

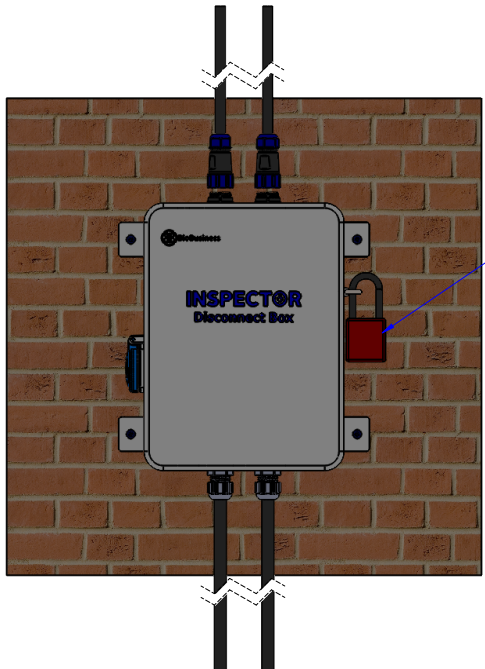

Safety is a top priority when it comes to electrical systems, and this disconnect box includes two sets of LOTO (Lockout/Tagout) for added safety . The box is housed in a standard ABS enclosure with a galvanized base plate, which is wall-mounted and has an IP65 rating.

The disconnect box includes several essential components, such as:

    1. 2 Fuse holder 3 pole _ 690V /32A
    2. 6 Cartridge Fuse 6A / 500V
    3. 2 MCB 3P _480V/20A
    4. Plugin Cable Connector – IP68 - 500V - UL Listed
    5. Voltage cables 5-wire 450/750V
    6. 2 set of LOTO for safety
    7. Standard ABS Enclosures with Galvanize Base Plate _Wall Mounting _IP65
