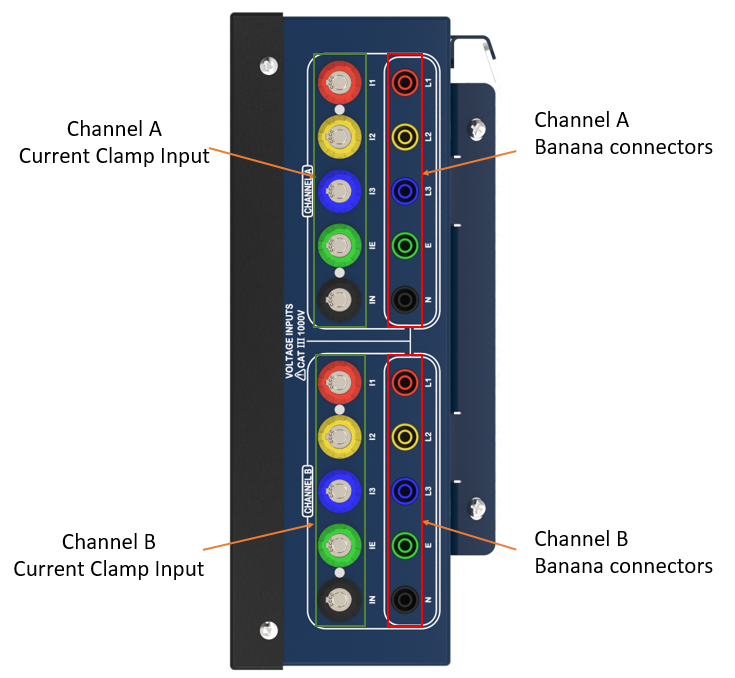

Interface

Description

Q


Channel A current

5 LEMO connector  (I1, I2, I3, IE, IN)

1


Channel A voltage

5 Banana connectors (L1, L2, L3, E, N)

1


Channel B current

5 LEMO Clamp Input  (I1, I2, I3, IE, IN)

1


Channel B voltage

5 Banana connectors (L1, L2, L3, E, N)

1
