General Installation Layout

Choosing the best place to fix Inspector & Sensor

Installation engineer/technician shall check a place on a wall that is closest to: UPS cables, Mains cables and helium compressor cables.
Make sure that this place can be accessed easily for further maintenance and for the rest of installation.
Make sure that this place is not below any air conditioner because sometimes air conditioner may leak water on the device.
IMPORTANT: Inspector must be installed only by an expert for electrical installations.

Inspector Installation General Layout

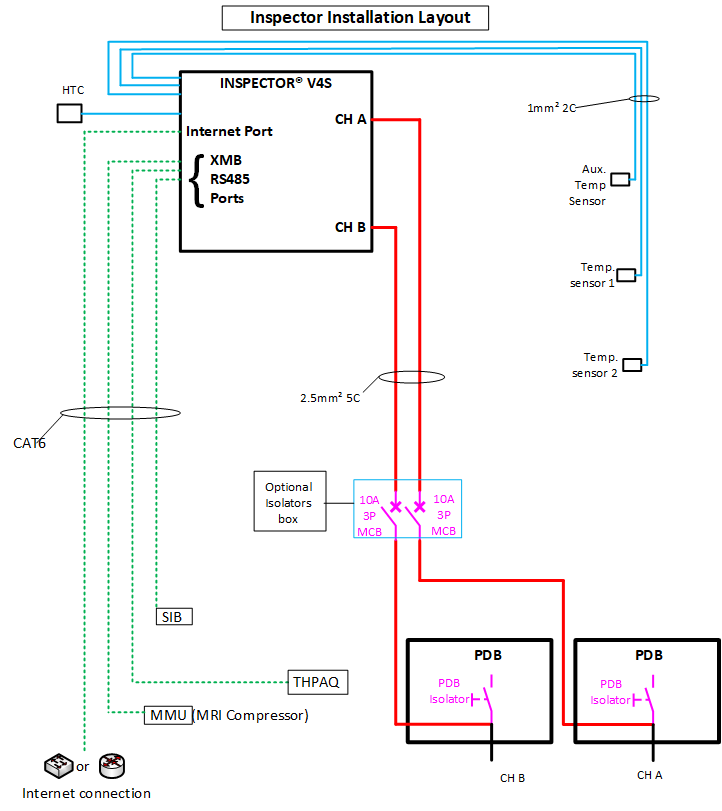

$E:\QMS\R2210201 (Inspector V4)\Inspector Installation layout ii.png$

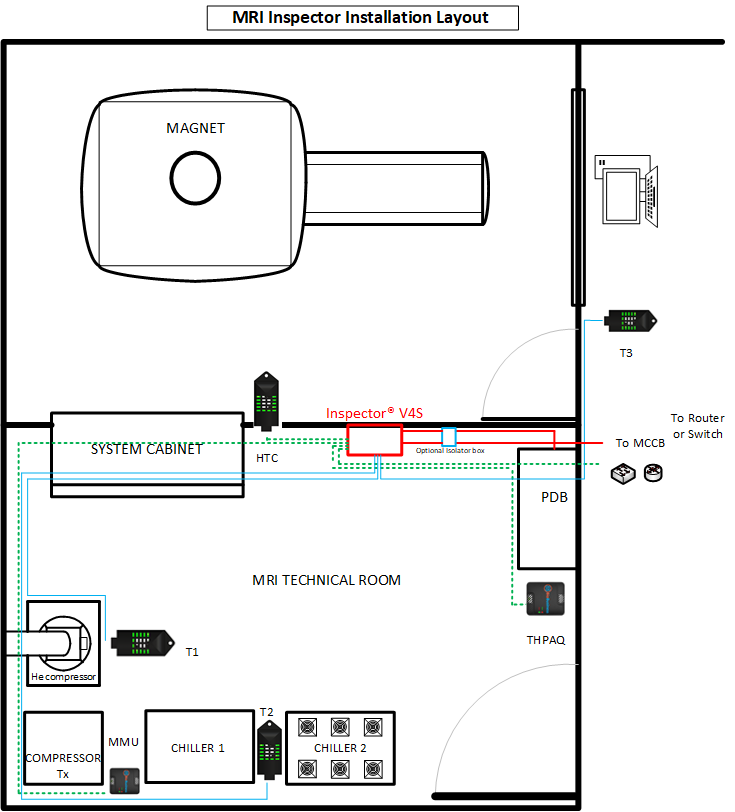

$E:\QMS\R2210201 (Inspector V4)\Inspector Installation layout MRI.png$

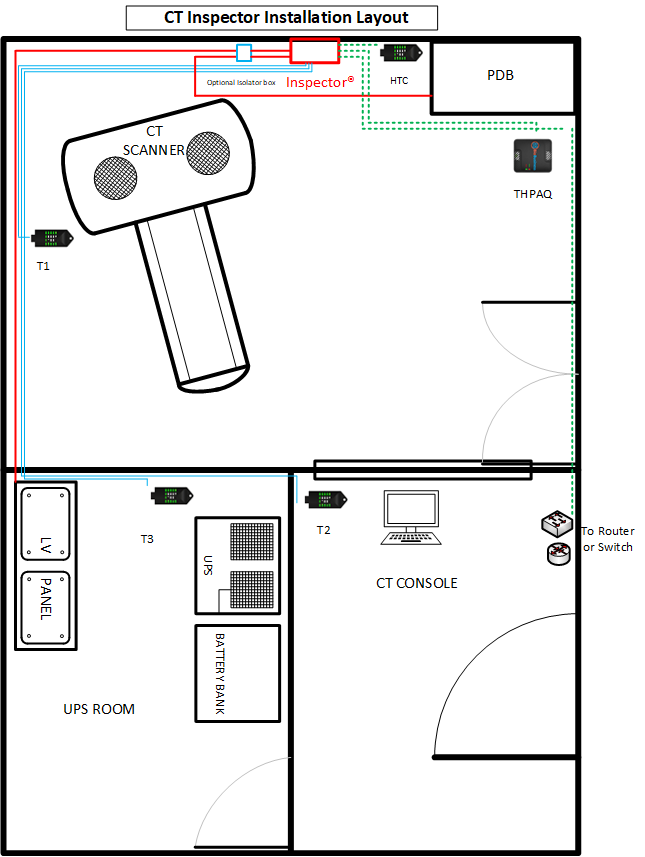

$E:\QMS\R2210201 (Inspector V4)\Inspector Installation layout CT.png$

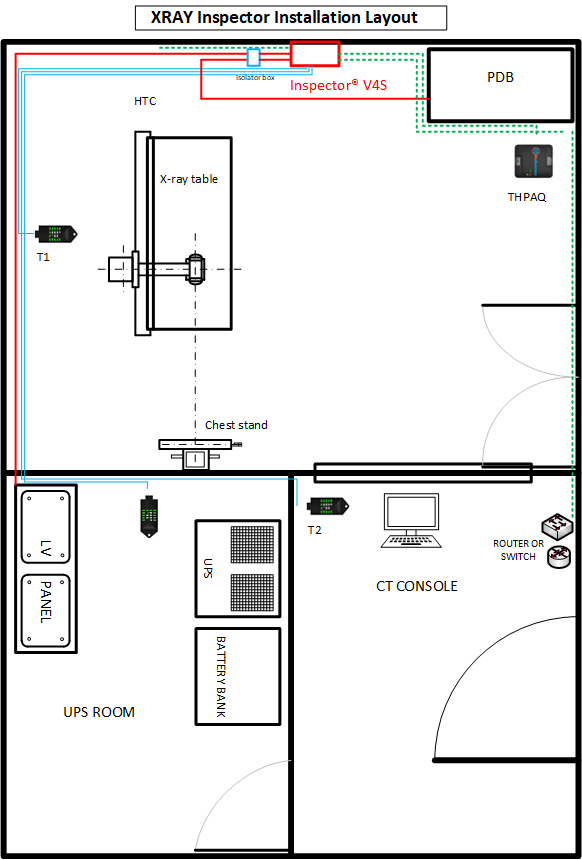

$E:\QMS\R2210201 (Inspector V4)\Inspector Installation layout XRAY.png$

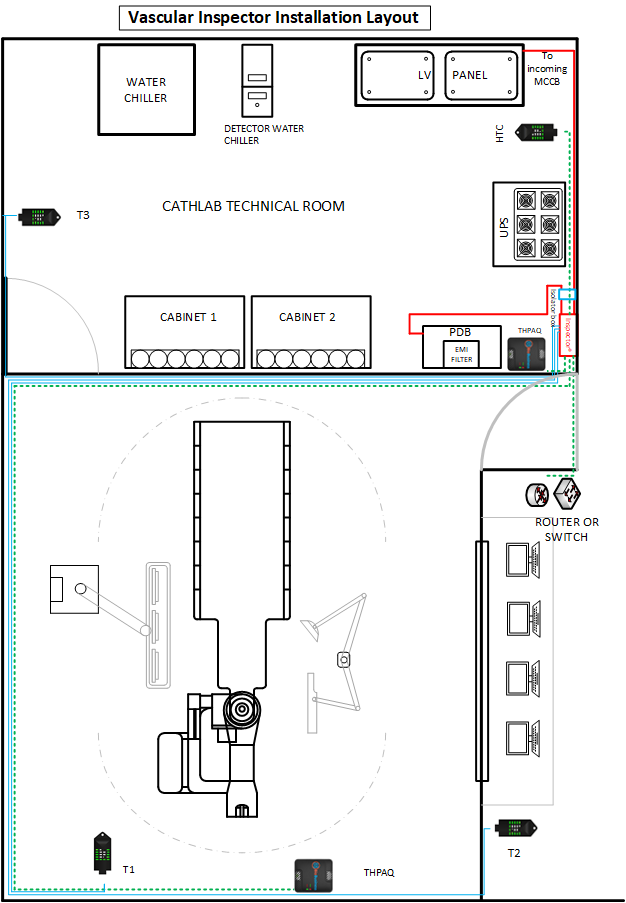

$E:\QMS\R2210201 (Inspector V4)\Inspector Installation layout Vasc.png$
