Installation of Inspector device shall be done correctly to get the most out of the system, monitor parameters that really matter and avoid electrical shocks.


Types of tools used in installation

  • In order to install Inspector in real site you will need some specific tools such as:


N

Tool


1

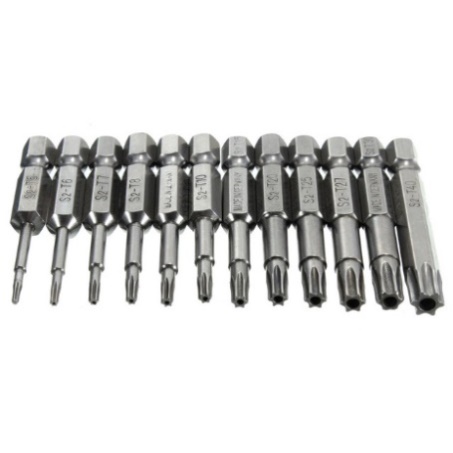

Star shaped screwdriver set (TORX)

2

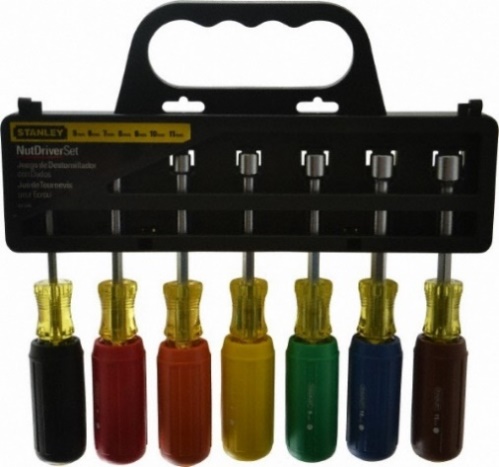

Nut driver set

3

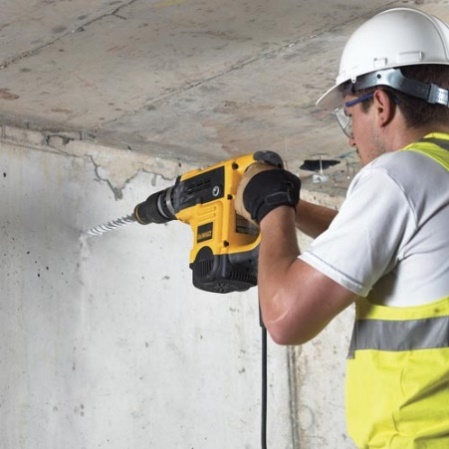

Hammer Drill Kit

4

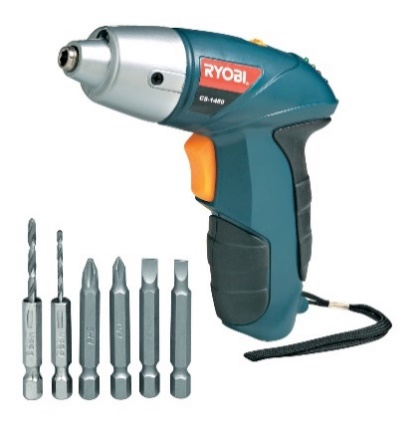

Electric screwdriver Kit

5

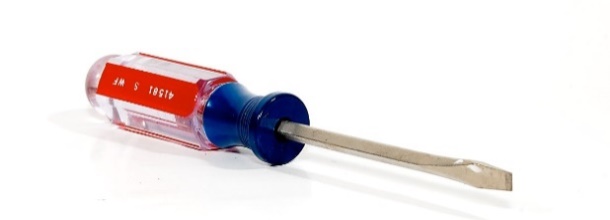

Slot shape screwdriver (1pc large, 1pc small)

6

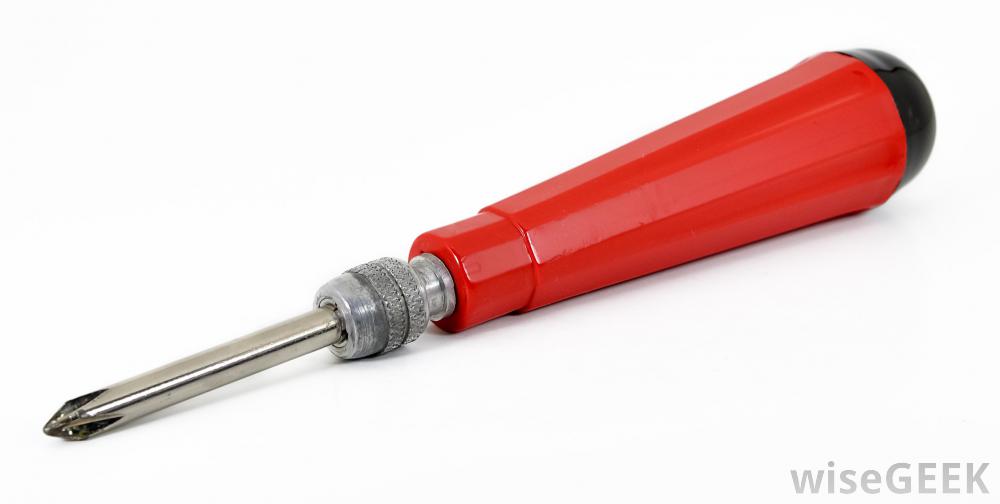

Philips shape screwdriver (1pc large, 1pc small)

7

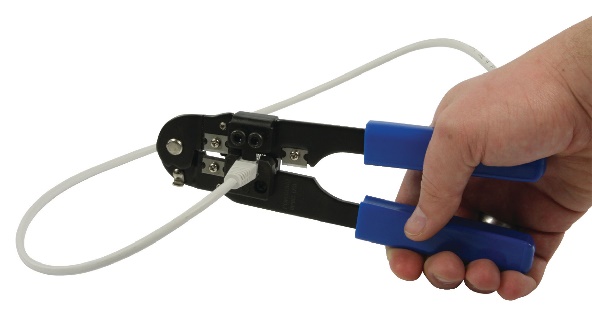

Rj45 Connector crimping tool

8

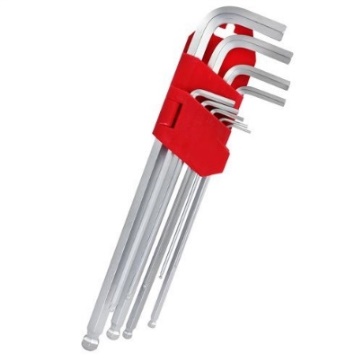

Allen key set

9

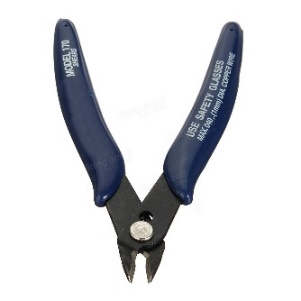

Wire cable cutter

10

Avometer

11

Clamp current meter


Cables

  1. Ethernet cable Cat-6 as shown in figure 1.


Figure 1

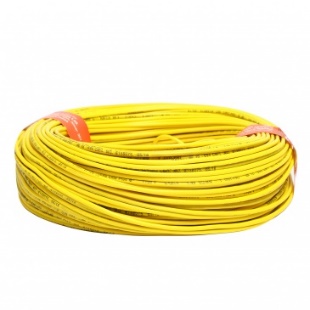

  1. 0.5 mm cables for ambient temperature sensors as shown in figure 2.

Figure 2
