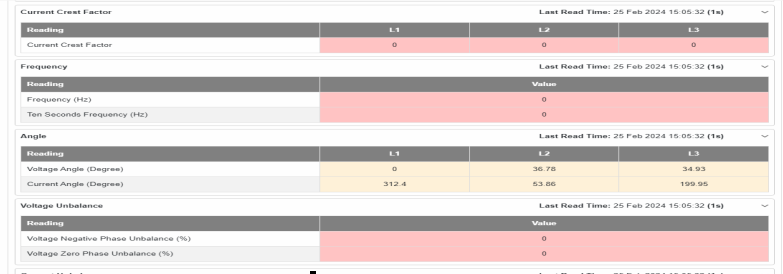

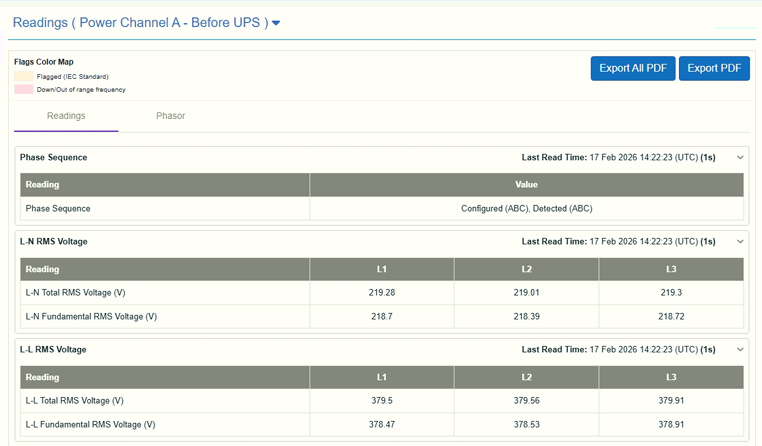

The Readings tab provides real-time voltage and current measurements for the lines connected to the selected power channel.



Note: When a parameter is flagged, the value cells background takes the corresponding flag color.

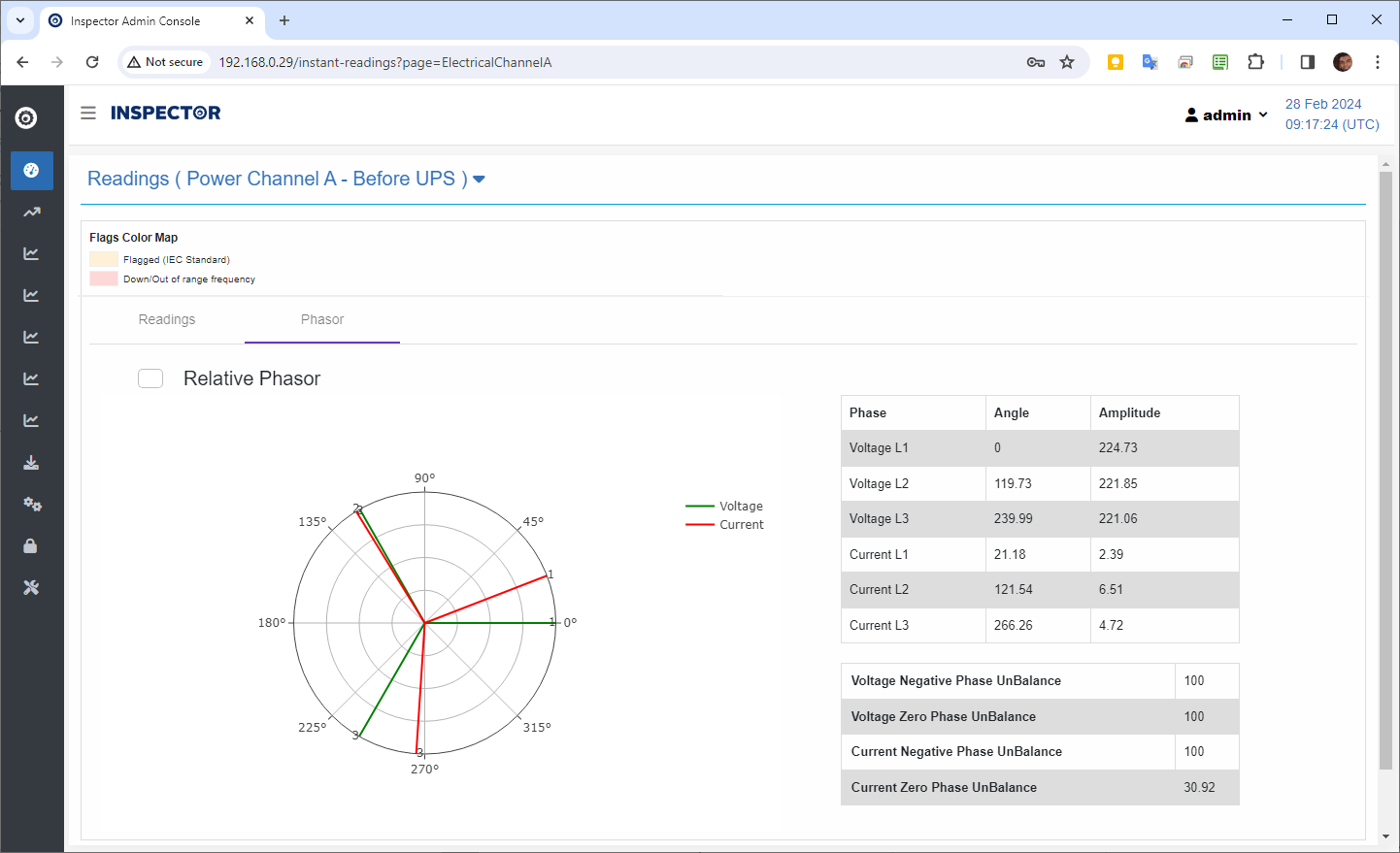

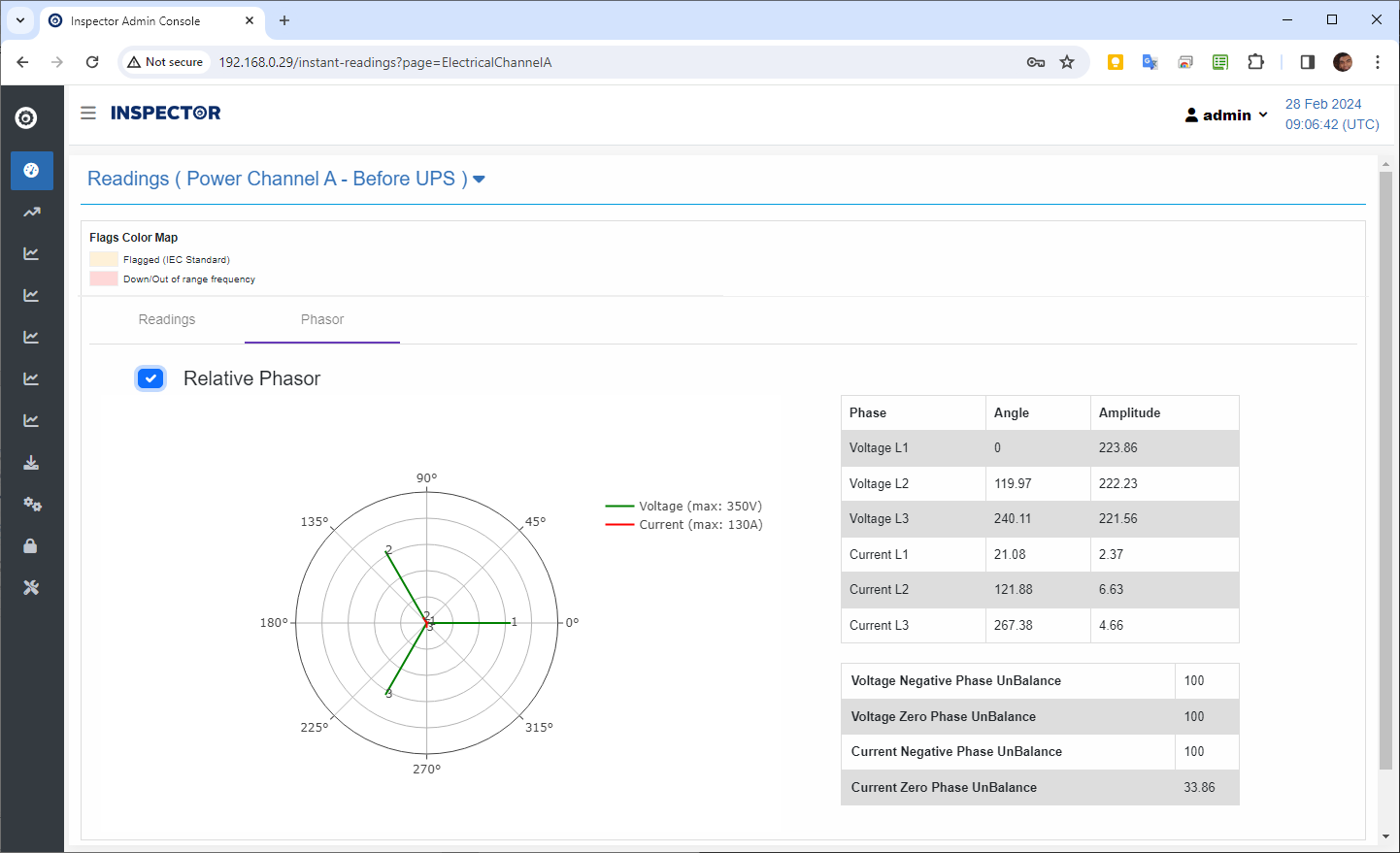

  • Phasor tab includes optional relative phasor visualization ( lengths according to the amplitude values)





  • Summary for the amplitude, angles, and unbalance readings.
