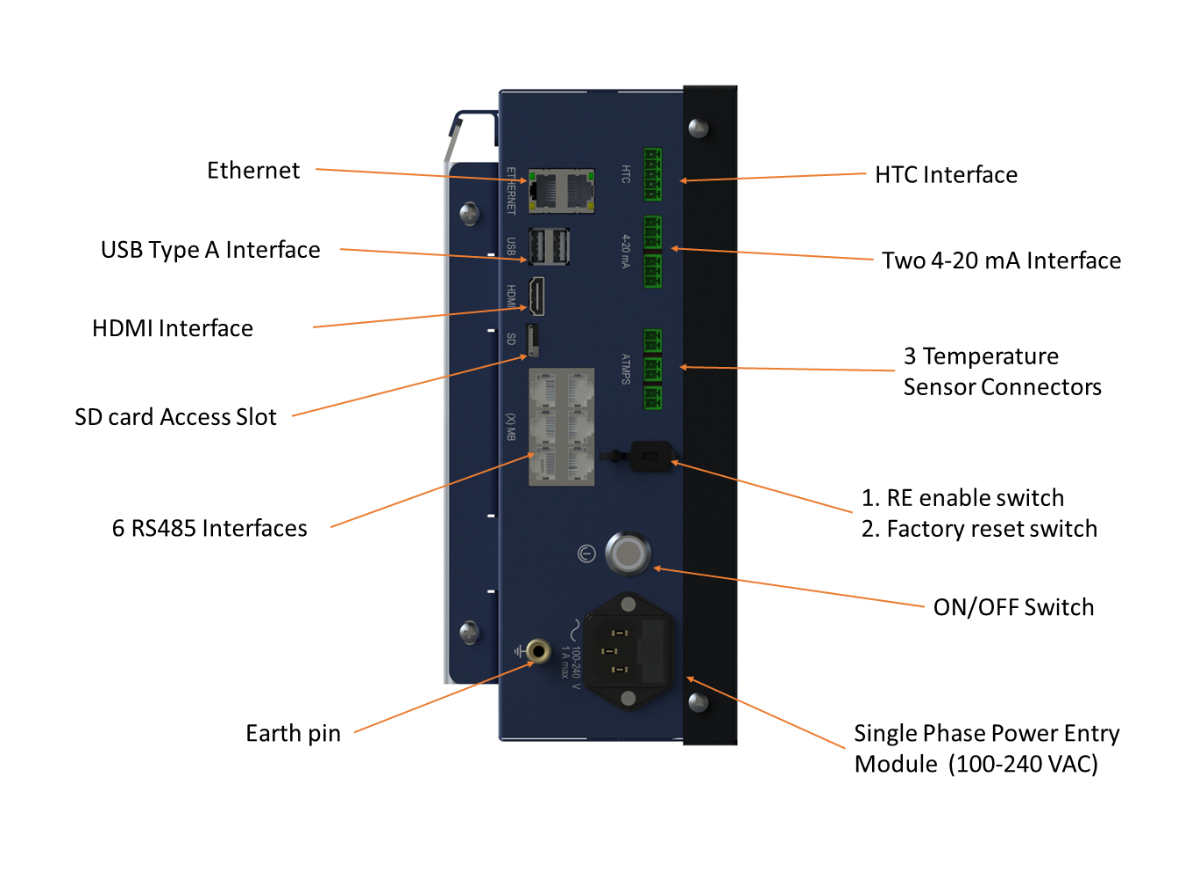

Sensor Interface Side
|
Interface |
Description |
Q |
|
Ethernet 1 |
Network connection interface |
1 |
|
Ethernet 2 |
FE Local configuration port |
1 |
|
USB |
USB Type A (data uploading or powering router) |
2 |
|
HDMI |
HDMI Display Interface |
1 |
|
SD Card |
SD Card access slot |
1 |
|
(X)MB |
RS485 interfaces |
6 |
|
HTC |
Humidity, Temperature sensor connector |
1 |
|
4-20 mA |
4-20 mA sensor connectors |
2 |
|
ATMP |
Temperature sensor Connectors |
3 |
|
Dip Switch 1 |
RE Enable Switch |
1 |
|
Dip Switch 2 |
Factory Reset Switch |
1 |
|
Push button |
ON/OFF Switch |
1 |
|
AC Inlet |
Single Phase power Entry Module |
1 |
|
Earth pin |
Chasseing earth pin |
1 |
