• Readings represent all readings values of a site (System Status, Environmental Readings, Electrical Readings, Sending Statistics, Device Info, Device Calibration and Update Calibration)

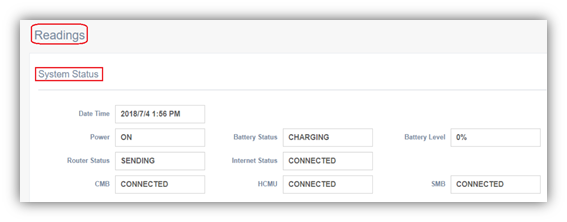

  • System Status which contains parameters of power and peripherals connected to Inspector (Date Time, Power, Battery Status, Battery Level, Router Status, Internet Status, CMB, HCMU

and SMB)


Parameter

Declaration

Date Time

Date and time now

Power

Power status

Battery Status

Full/Charging/Discharging

Battery Level

Percentage value for battery charging

Router Status

Status of router behaviour

Internet Status

Connected/Disconnected

CMB, HCMU,SMB

Peripherals status (Connected/Disconnected)



If you have any issues regarding Battery Status, Internet Status or HCMU, CMB or SMB Connections, check Inspector™ Maintenance & Troubleshooting chapter.

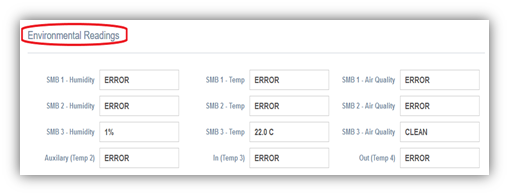

  • Environmental Readings represent percentage of environmental parameters (Humidity, Room Temp, Air Quality, Auxiliary (Temp2), In (Temp 3) and Out (Temp 4))


Parameter

Declaration

Humidity

Room ambient humidity

Room Temp,

Auxiliary (Temp2),

In (Temp 3)

Current reading for room ambient temperature sensors

(which are distributed in different places in site to measure different values)

Air Quality

Current reading for room air quality

In (Temp 3)

Room ambient temperature/helium compressor input air temperature

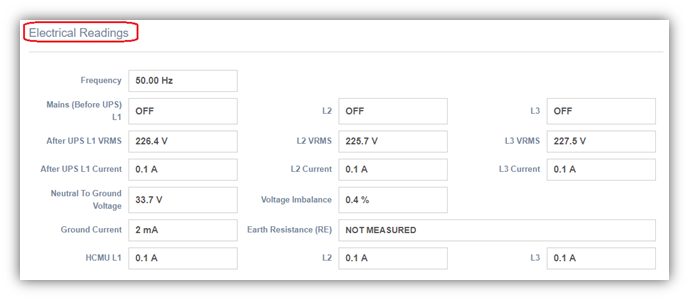

  • Electrical Readings represent values of electrical parameters (Frequency, Mains (Before UPS) L1, L2, L3, After UPS L1 VRMS, L2 VRMS, L3 VRMS, After UPS L1 Current, L2 Current, L3 Current, Neutral To Ground Voltage, Voltage Imbalance, Ground Current, Earth Resistance(RE), HCMU L1, L2, L3)


Parameter

Declaration

Mains (Before UPS) L1, L2, L3

Lines status of mains

After UPS L1, L2, L3 VRMS

Lines values of voltage root mean square after UPS

After UPS L1 Current, L2, L3

Lines values of current after UPS

Neutral To Ground Voltage

Voltage values for neutral to ground

Voltage Imbalance

Current reading for voltage imbalance

Ground Current

Current reading for ground current

Earth Resistance(RE)

Current reading for earth resistance

HCMU L1, L2, L3

Current reading for HCMU lines


If you have any issues regarding Coils Connections or RE, check Inspector™ Maintenance & Troubleshooting chapter.

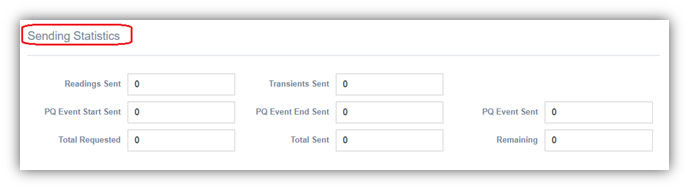

  • Sending statistics represent number of alarms for each parameter (Readings Sent, Transients Sent, PQ Event Start Sent, PQ Event End Sent, PQ Event Sent, Total Requested, Total Sent and Remaining)


Parameter

Declaration

Readings Sent

Number of readings alarms sent

Transients Sent

Number of power quality transients sent

PQ Event Start Sent

Number of short power quality events start sent

PQ Event End Sent

Number of short power quality events end sent

PQ Event Sent

Number of long power quality events sent

Total Requested

Number of events tried to be sent

Total Sent

Number of events successfully sent

Remaining

Number of events can’t be sent and wait to be sent later

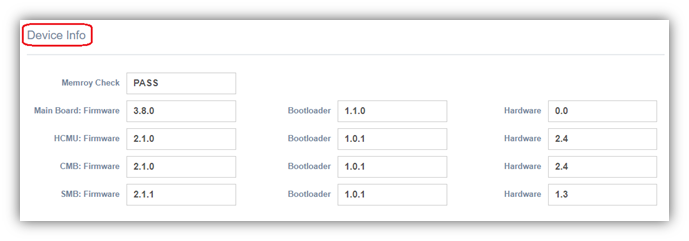

  • Device Info represents memory status and versions in Inspector as (Memory Check, Main Board: Firmware, Bootloader, Hardware, HCMU: Firmware, Bootloader, Hardware, CMB:

Firmware, Bootloader, Hardware and SMB: Firmware, Bootloader, Hardware)


Parameter

Declaration

Memory Check

Check successful accessibility for memory (Pass/Fail)

Main Board: Firmware

Current version for main firmware

Bootloader

Current version for bootloader

Hardware

Current version for hardware

CMB: Firmware

Current version for CMB firmware

SMB: Firmware

Current version for SMB firmware
