For installing multiple SMB’s, each SMB must have unique index.


Old SMB’s versions are treated as SMB 1 and can’t be installed with another SMB 1.

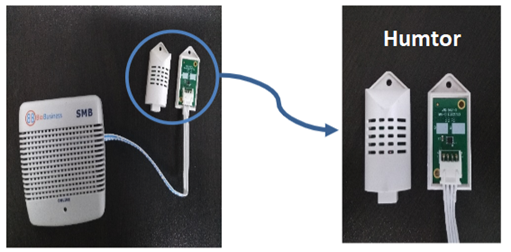

  • The SMB unit shown contains an Air Quality sensor, a temperature sensor and a humidity sensor “Humtor Sensor”



    • Find the place where you want to monitor Room Ambient Temperature, Humidity and Air Quality. Fixing the SMB unit at this place using the attached screws

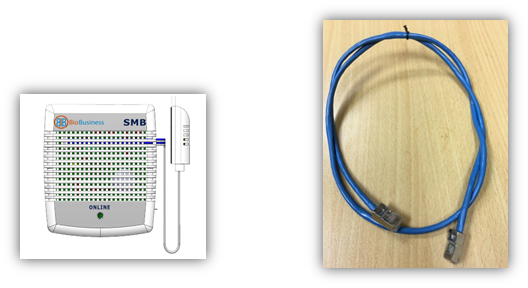

    • An RJ-45 with a CAT6 cable will be used to connect the SMB to Inspector device and the cable will be straight
    • Don’t connect the cable to Ethernet connector here because this connector is used for the connecting router or LAN only



    • As shown, figures illustrate how to connect Cat6 cable and its wiring



    • As shown, this figure illustrates how to connect Cat6 cable and its wiring
