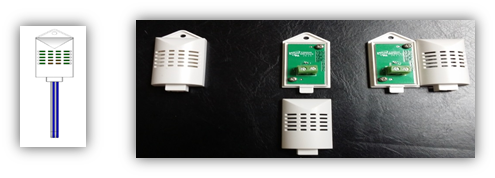

• Three temperature sensors as shown are attached with the system. Find the places where you need to measure temperature. Fixing the sensors using attached screws, prepare the wires for the sensors, the length of cable can be extended up to 10 meters and the cable is a 2-wire cable with thickness of 0.5mm


  • Connect every cable with its corresponding connector on Inspector board. Connectors are J19, J20, and J21
