From Basic Configuration:

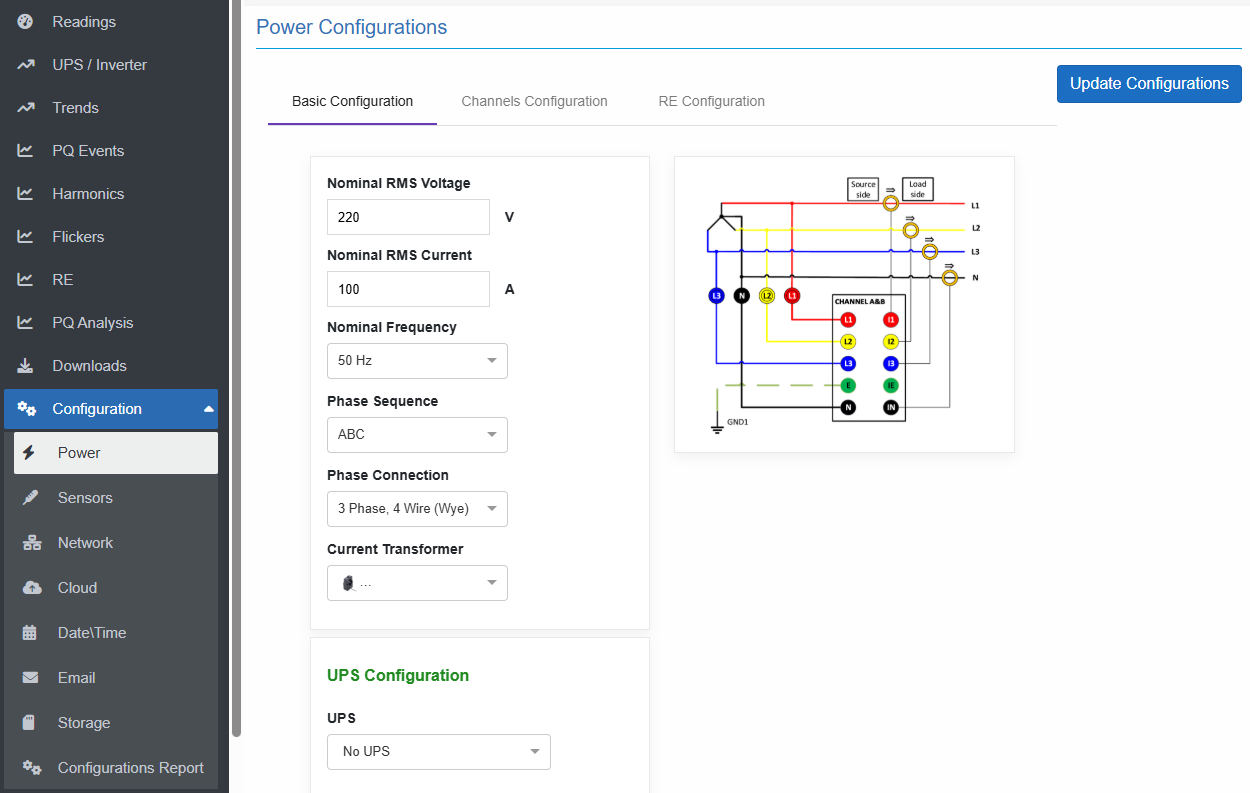

  1. Set the nominal voltage and current values.
      Note: Power quality event thresholds and analysis limits for RMS voltage readings are defined as percentages of the configured nominal RMS voltage value.
  2. Select the operating frequency (50 Hz or 60 Hz).
  3. Set the phase sequence to either ABC or ACB.
  4. Set the phase connection type: Wye (Star), Delta, or Single Phase.
    • WYE (Star) configuration:Voltage events are triggered from Line-to-Neutral measurements.
    • Delta configuration: Voltage events are triggered from Line-to-Line measurements..

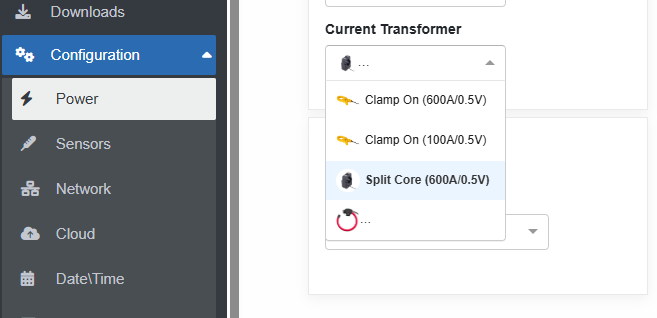

  1. Select current transformer clamp type.





6.   In the UPS Configuration section, select whether a UPS exists or not.

  • If a UPS exists, enter the following values:
    1. UPS power capacity (Maximum electrical load that the UPS can safely support without overload).
    2. Efficiency Drop Threshold (The load percentage beyond which the UPS operating efficiency begins to decrease.)
    3. High load % Threshold (The predefined load percentage at which the UPS issues a warning indicating a high load condition.)
