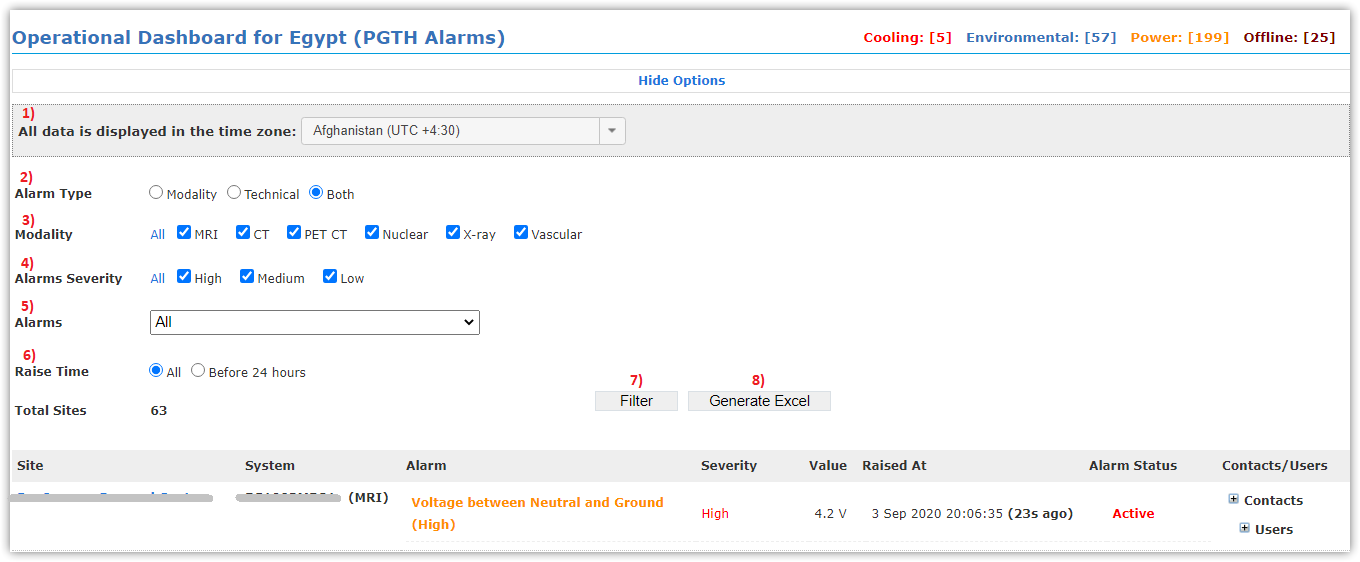

This dashboard displays total sites with (modality and technical) alarms in specific country.


Sites are filtered as following:

  1. Select Time Zone.
  2. Select Alarm Type (Modality, Technical, or Both).
  3. Select Modality type (MRI, CT, PET-CT, Nuclear, Vascular, or All).
  4. Select Alarms Severity (High,Medium, Low, or All)
  5. Select Alarms type according to power specs and installed measurement units.
  6. Select Raise Time (All, Before 24 hours).
  7. Click Filter button.
  8. Click Generate Excel button to get an excel sheet for site’s data displayed.


You can also hide filtration options to monitor only all sites loaded in page.

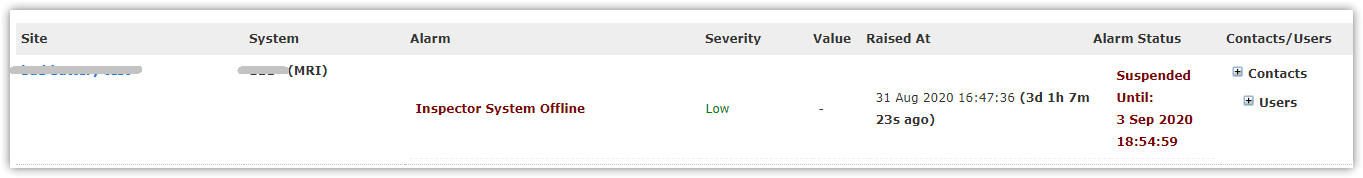

In case of active alarm is suspended for specific interval, alarm status turns into suspended until suspension interval ends,

and back active again.

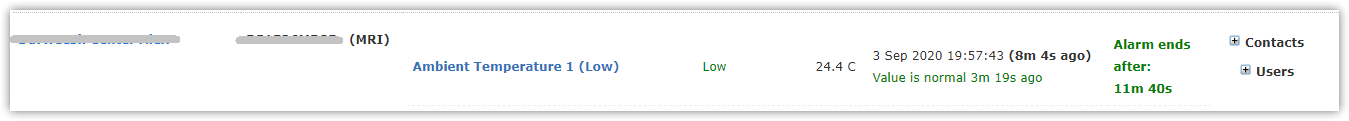

In case of alarm's back to normal interval is greater than ZERO, this alarm is still raised even if it's closed



You can edit back to normal interval from periodicity time settings in Readings & Alarms tab in Edit Site page.


For more information about alarms behavior and custom conditions, check Alarms Service Process chapter.

This page is affected by renaming environmental parameters as declared in 'Readings & Alarms' tab in Edit Site page.
