Download Readings

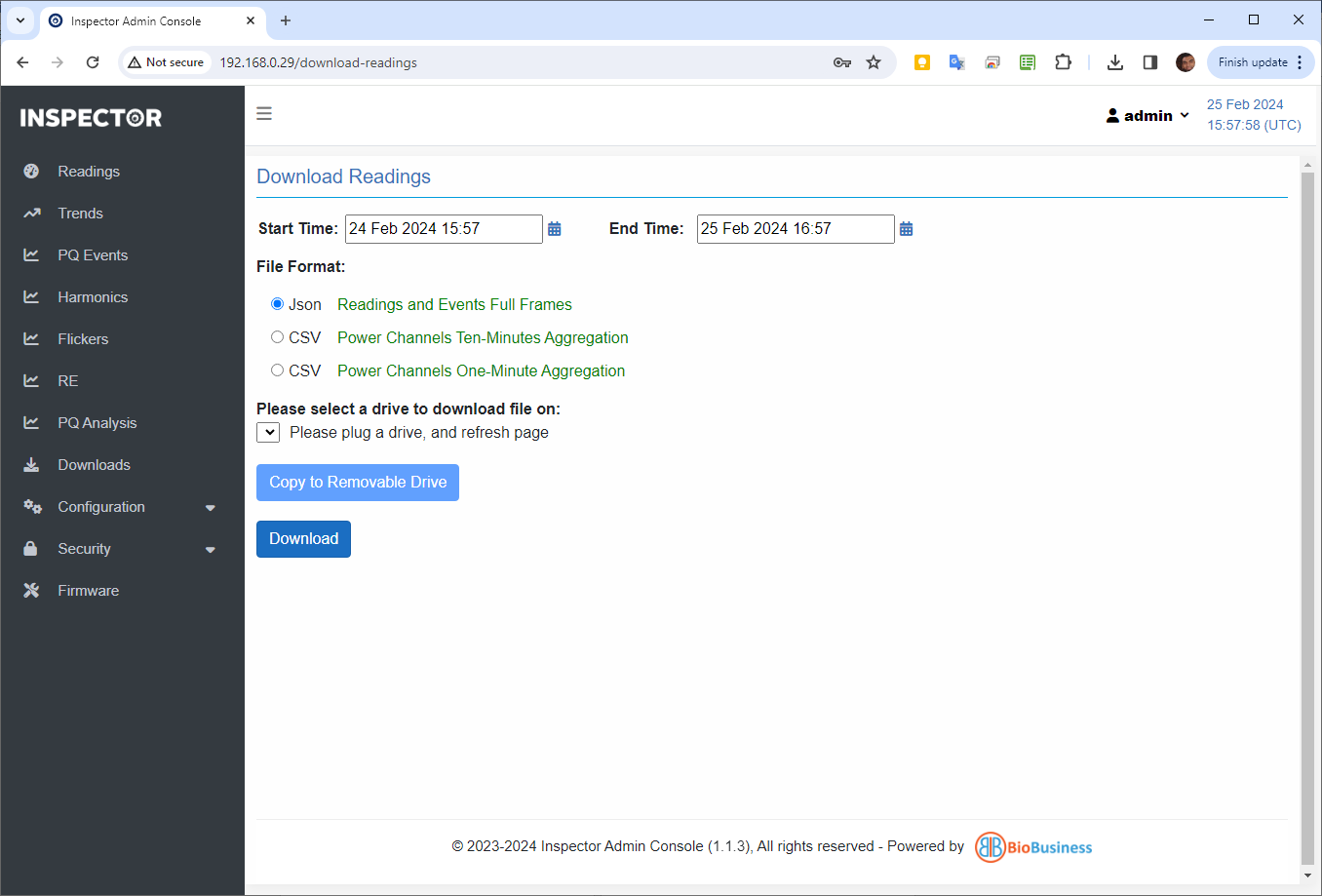

A time interval must be defined by selecting the start and end date and time, with a maximum allowable span of 30 days.

Data readings and power quality events recorded on the Inspector device can be downloaded or copied to a removable USB drive in either JSON or CSV format.

  1. JSON data frames :
  • Includes trend readings and power quality events.
  • Same format as the data sent to the cloud.
  • Ten-minute aggregated values.


  1. CSV files :
  • Provides only trend readings, no power quality events included.
  • Ten-minutes aggregated values.
  • One-minute aggregated values.



Insert the USB drive into one of the USB ports on the Inspector main unit.

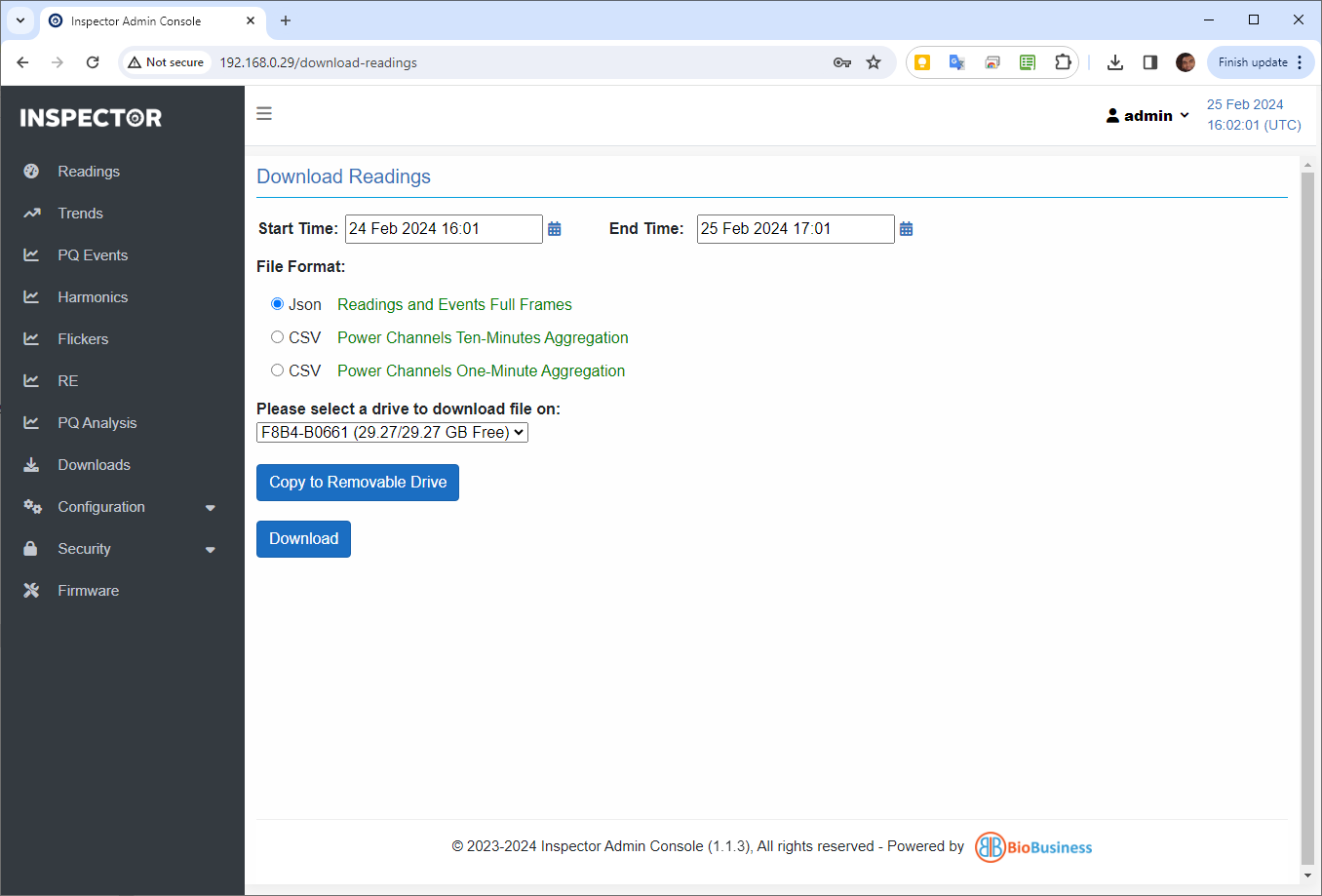

Refresh the Download page and select the drive from the drop-down list.




Then, click the copy button to start copying.
