The Disconnect Box can be fixed to the wall using one of the following methods:

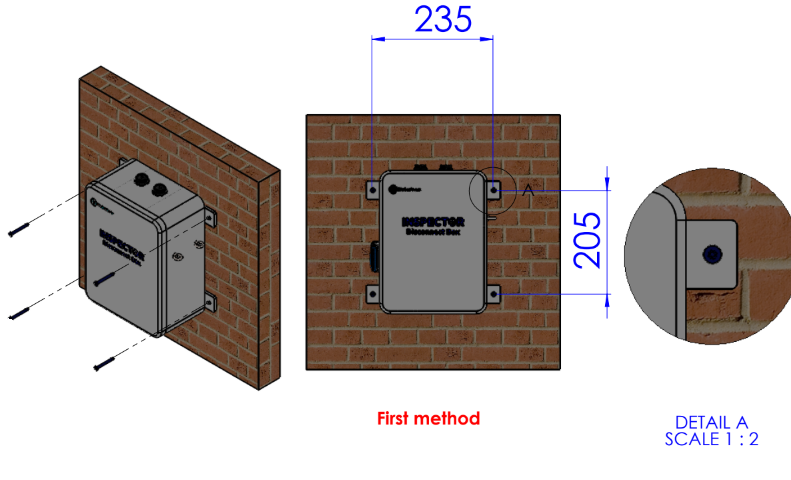

  • External Fixing
    Use the kit and fasteners included in the package to fix the Disconnect Box using the external fixing points.

  1. Drill four holes in the wall using a 6 mm drill bit with a minimum depth of 40 mm.
  2. Locate the four holes according to the drawing.
  3. Insert the Fischer anchors into the holes.
  4. Position the Disconnect Box over the holes.
  5. Secure it using four self-tapping screws with a screwdriver.

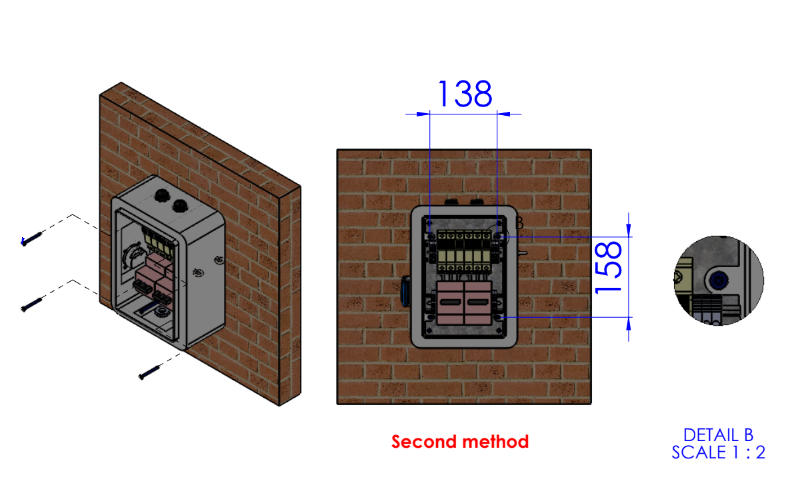

  • Internal Fixing
    Drill the pre-located holes inside the Disconnect Box enclosure to mount it using the internal fixing points.


  1. Drill the pre-located holes inside the enclosure using a 5 mm drill bit.
  2. Drill four holes in the wall using a 6 mm drill bit with a minimum depth of 40 mm.
  3. Locate the holes according to the drawing.
  4. Insert the Fischer anchors into the wall holes.
  5. Position the Disconnect Box.
  6. Secure the box to the wall using four self-tapping screws.
