Warning

Switch off power source before connect cables to PDB


Note: Wiring diagram follow INDIA Code

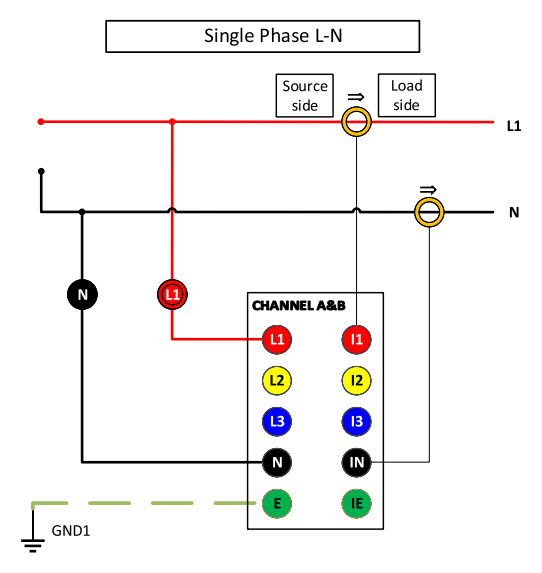

Single Phase L-N

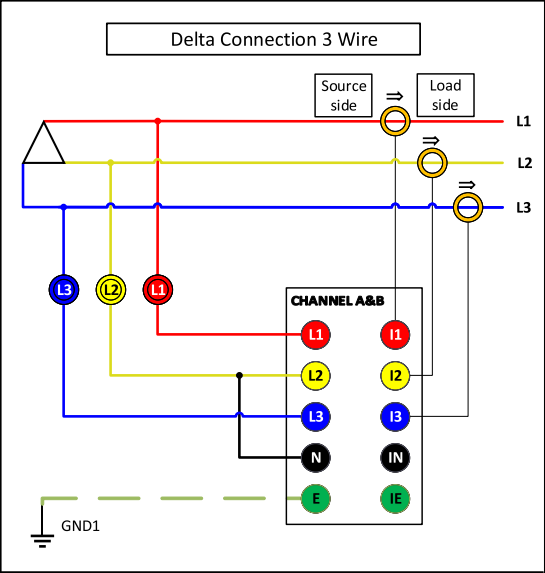

Delta (3 Phase)

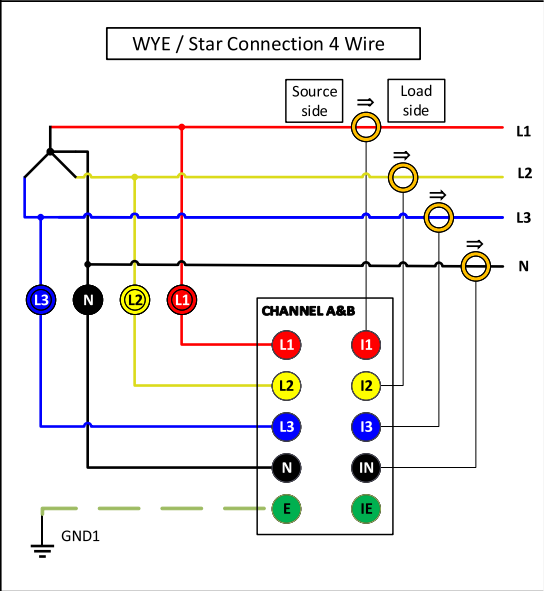

WYE/Star Connection
