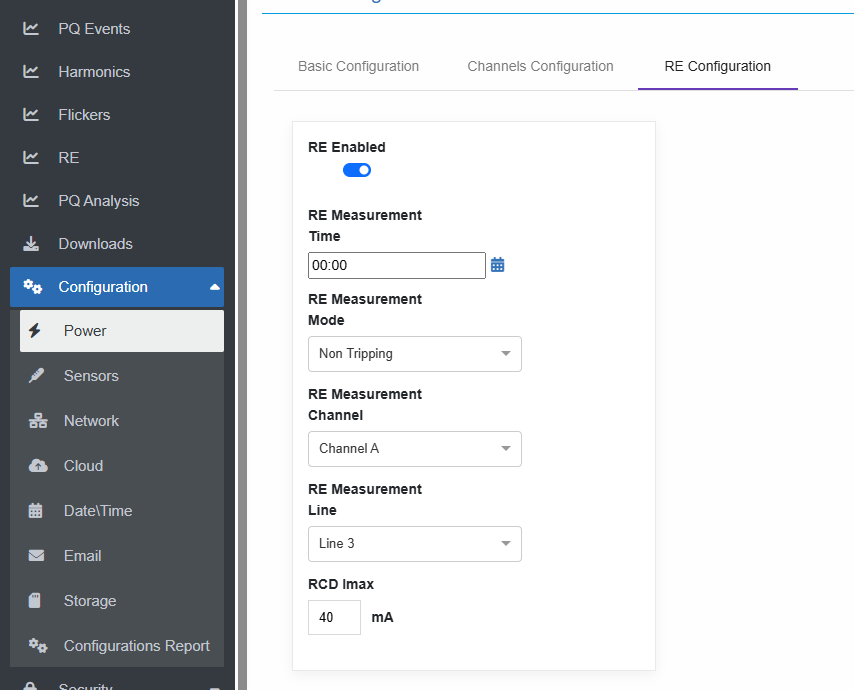

1. Select whether to enable or disable RE measurement.
  2. Choose preferable time to set RE daily measurement.
  3. Select RE measurement mode either Tripping or Non Tripping.



Note: When Non-tripping measurement mode is selected for RE, Inspector injects current set by user through Earth and Neutral.

    • If RCD or Earth Leakage circuit breaker exists, user should set the maximum allowed current to be injected, to avoid  breaking the RCD or Earth leakage circuit breaker.

4. Select the channel for which you want to measure RE.

5. Choose L1, L2 or L3 from which RE will be calculated.
