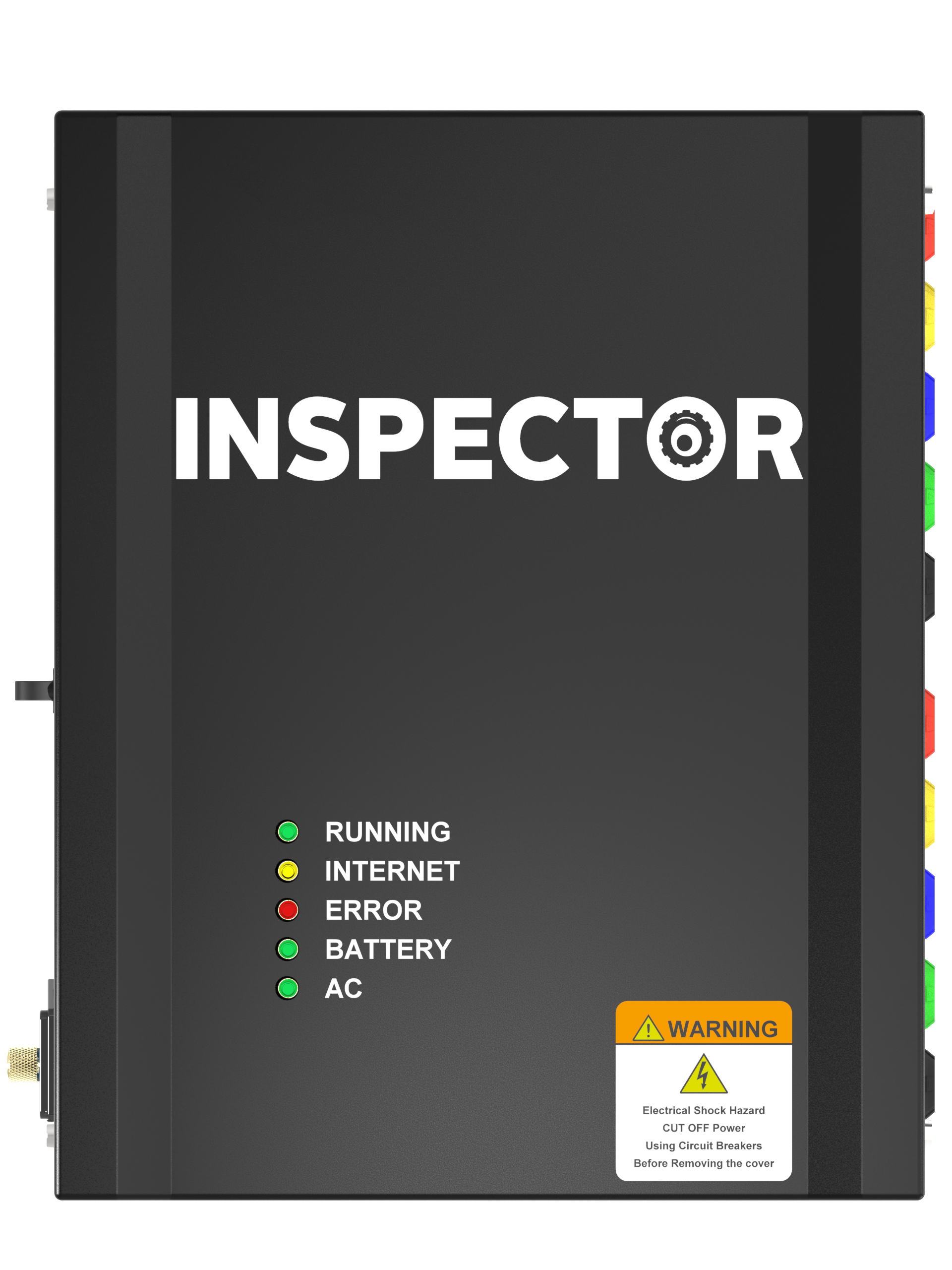

Inspector V4
Permanent protection for a single critical asset. The widest measuring range in the family, with earth resistance and earth current built in.
- 1000 V CAT III
- 6-hour battery
- Earth measurement
- 6 × RS-485
The Inspector range
Power quality analyzers.
Five ways to deploy one.
Every Inspector runs the same quad-core measurement engine, the same nine protocols and the same sensor family. What changes is where it lives — and what it needs to see.

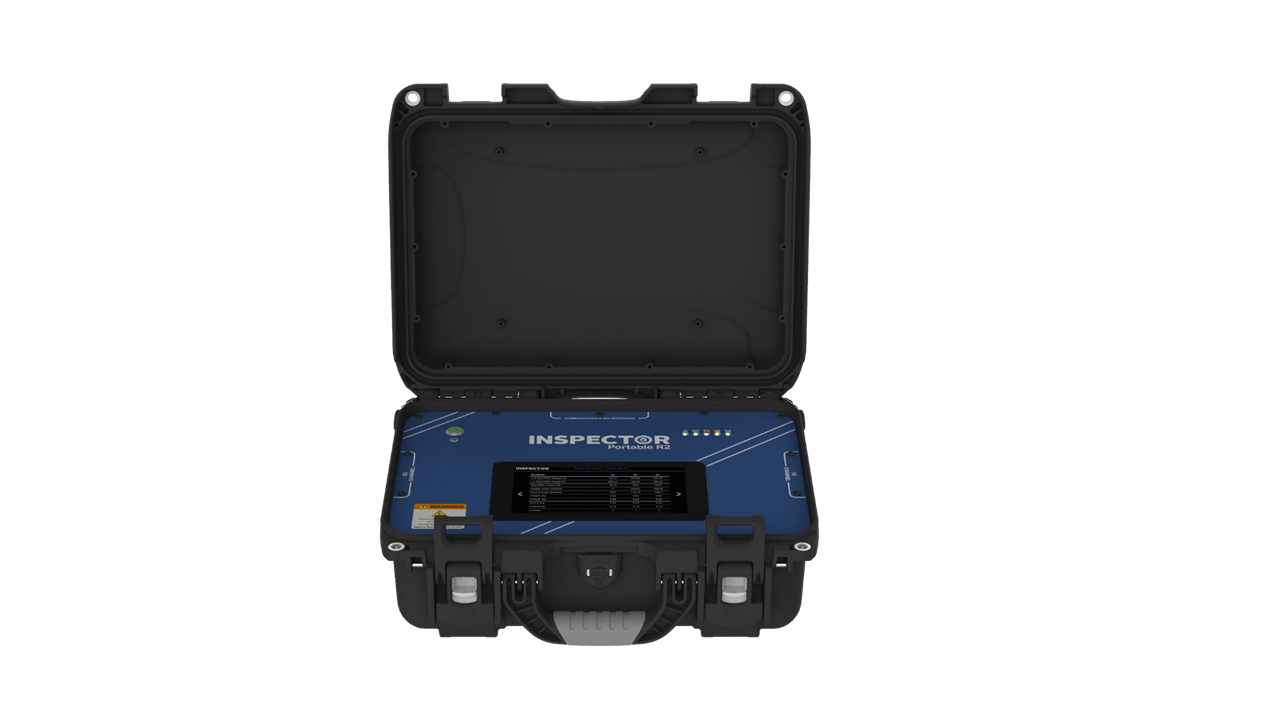

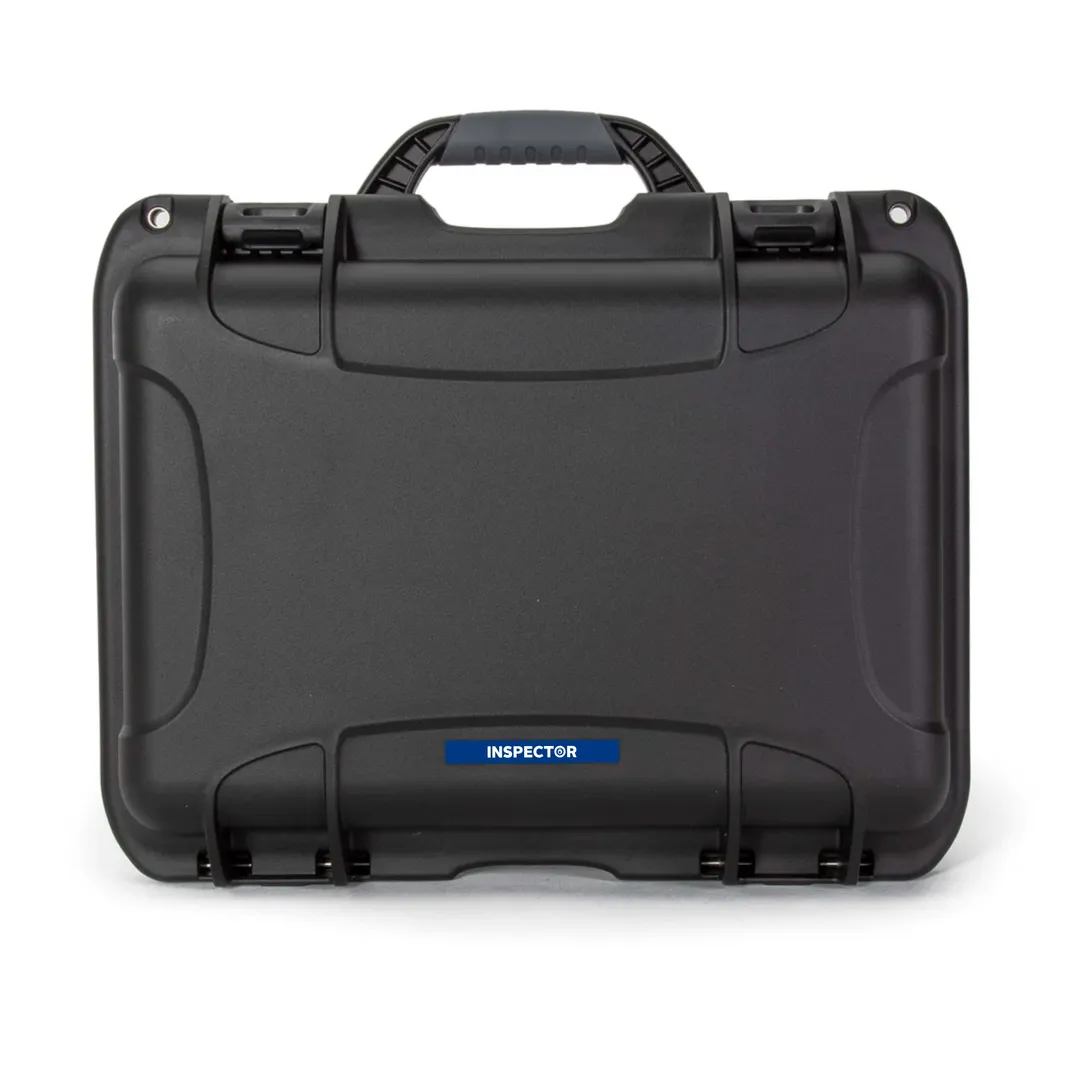

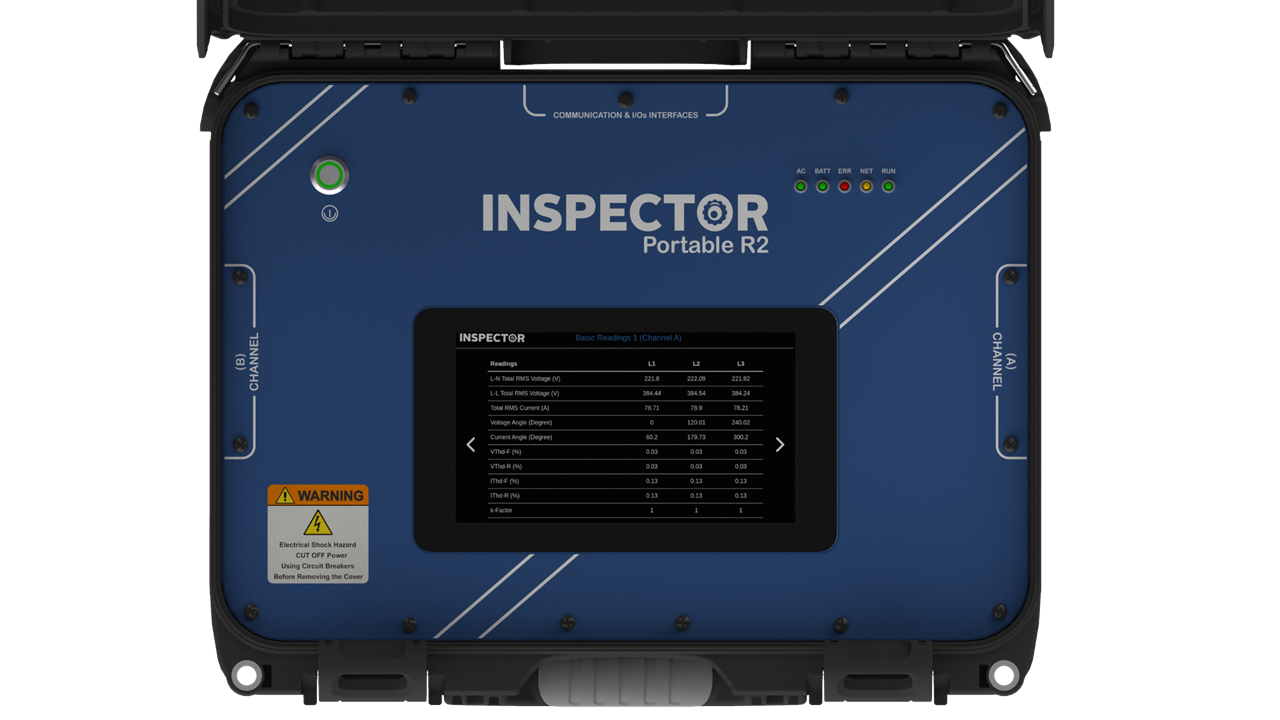

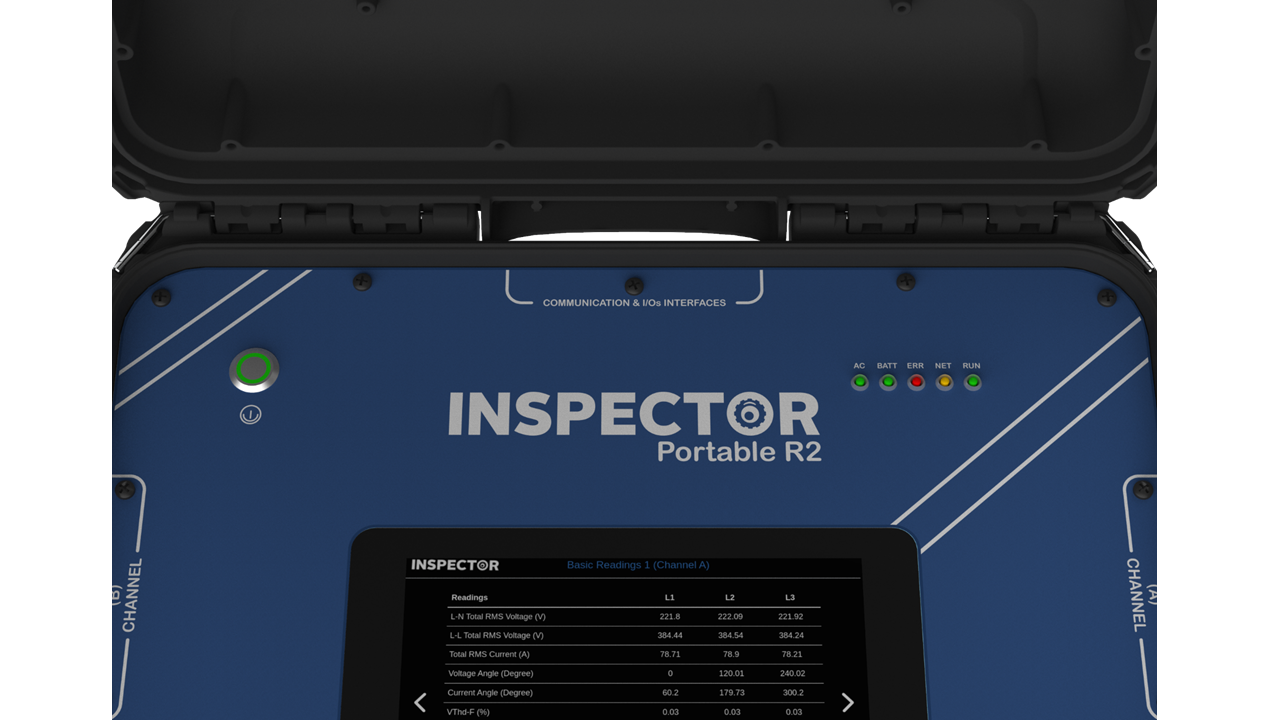

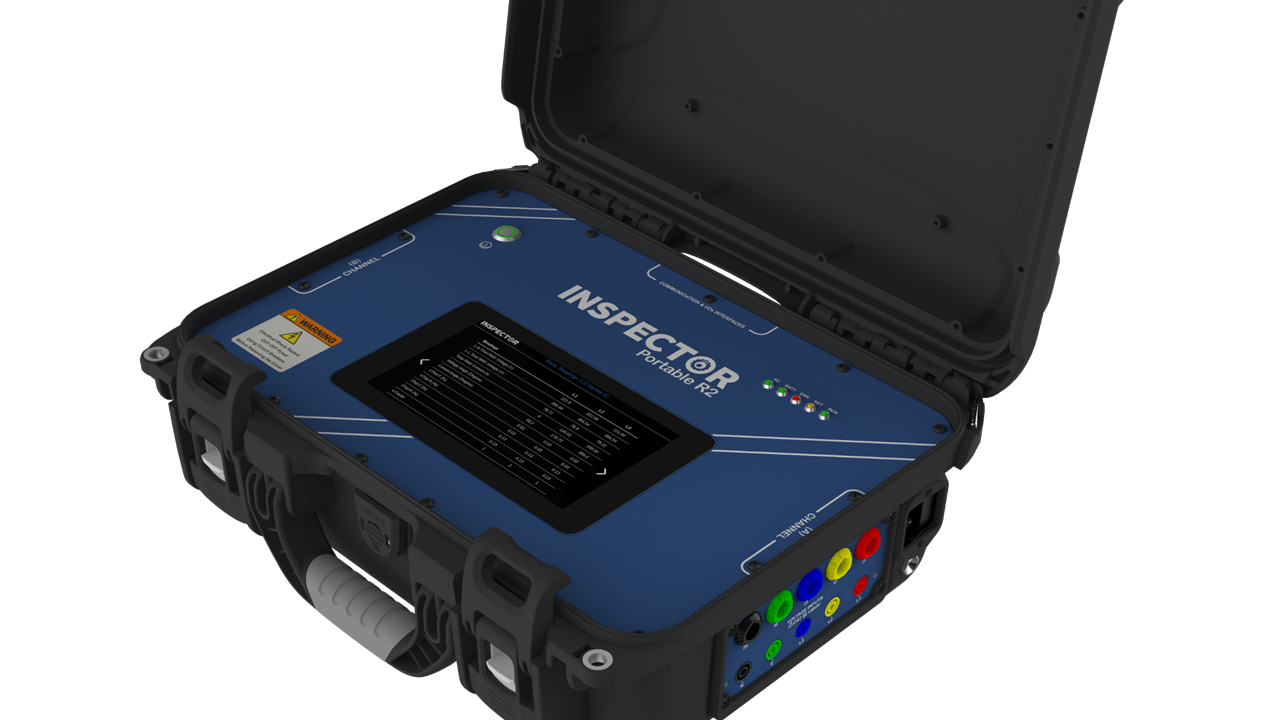

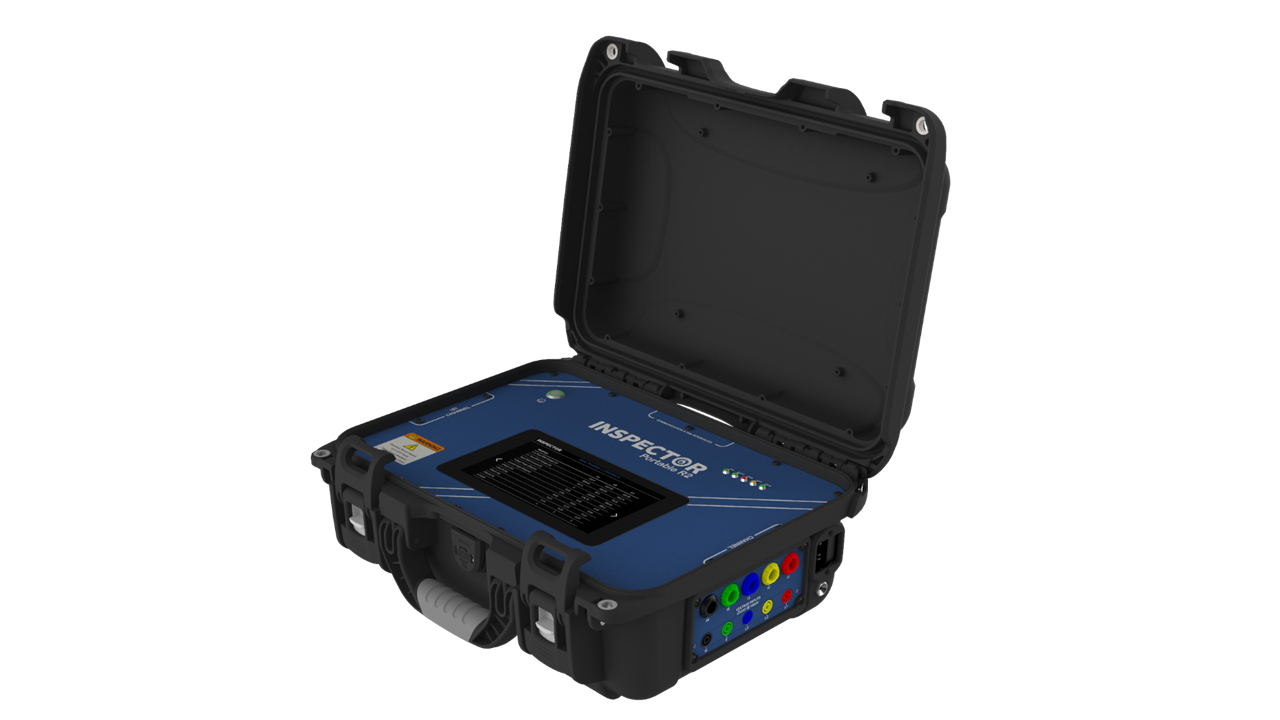

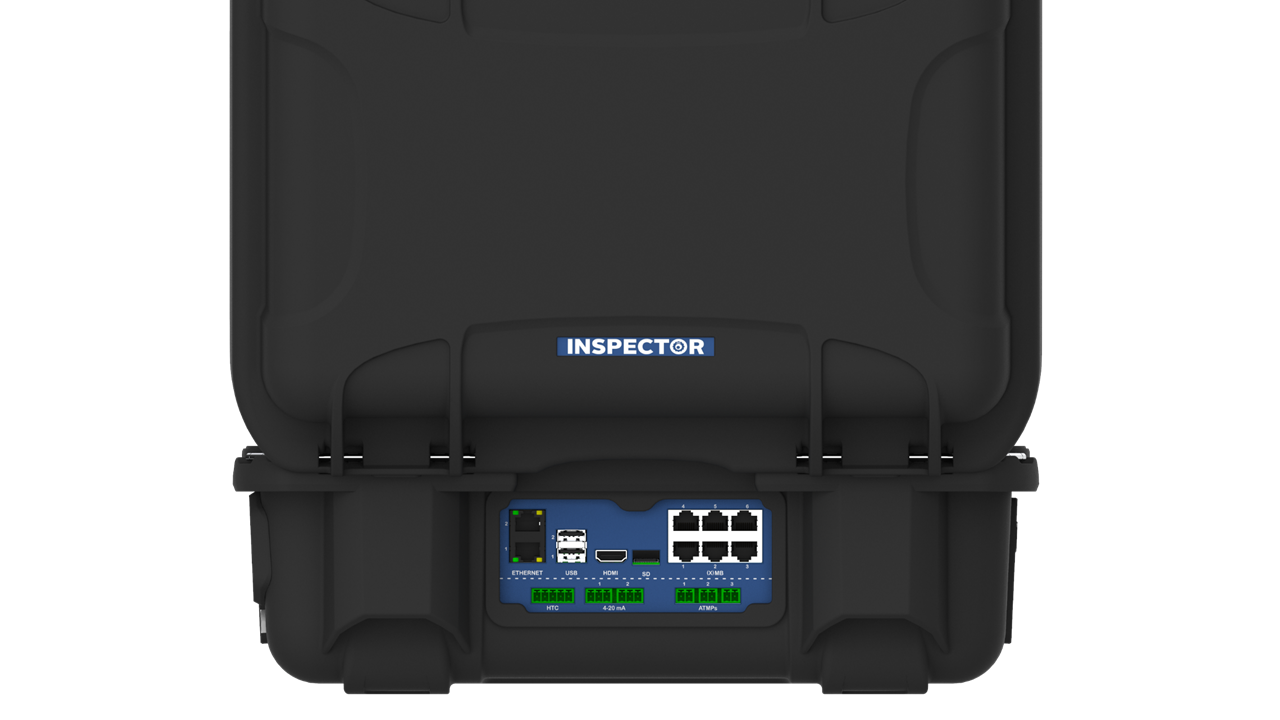

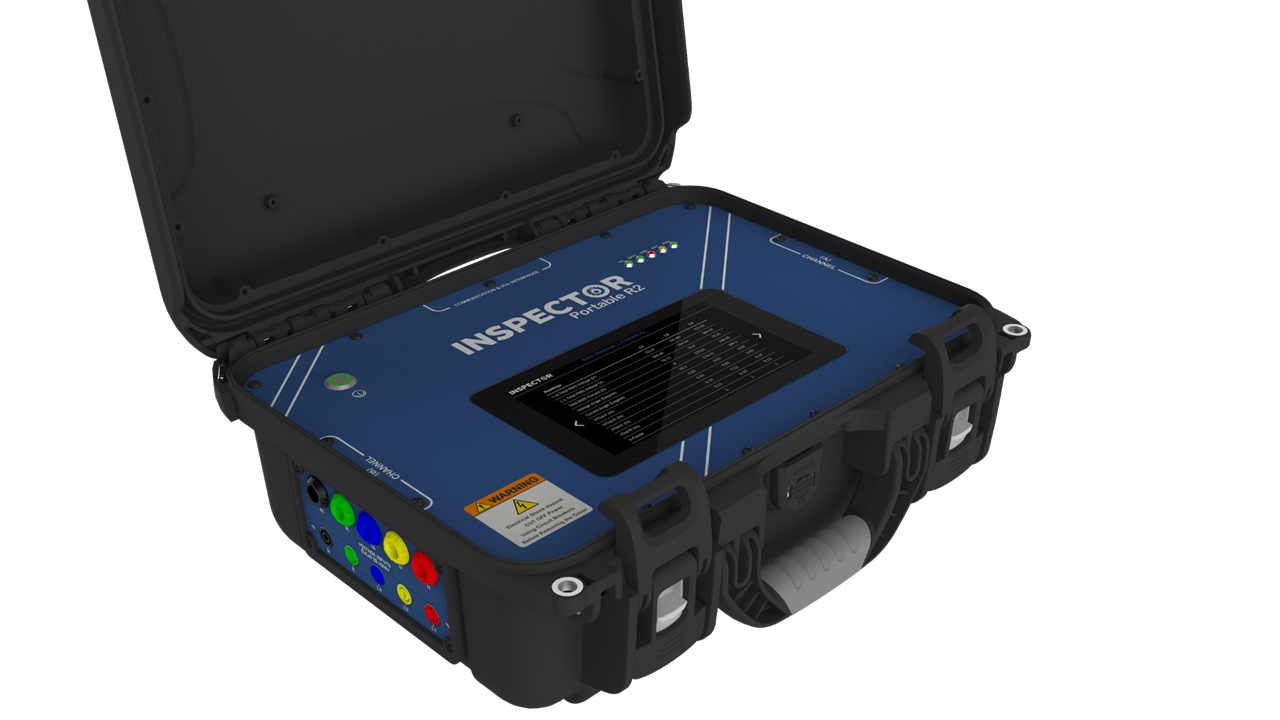

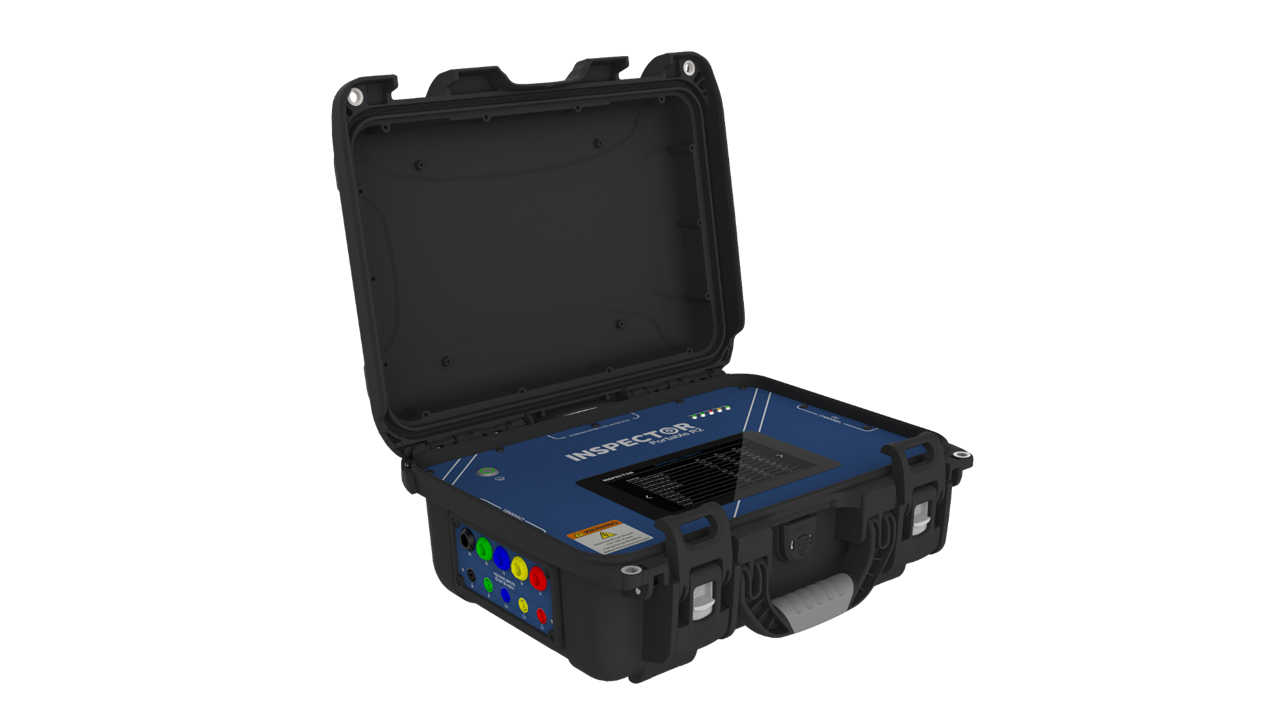

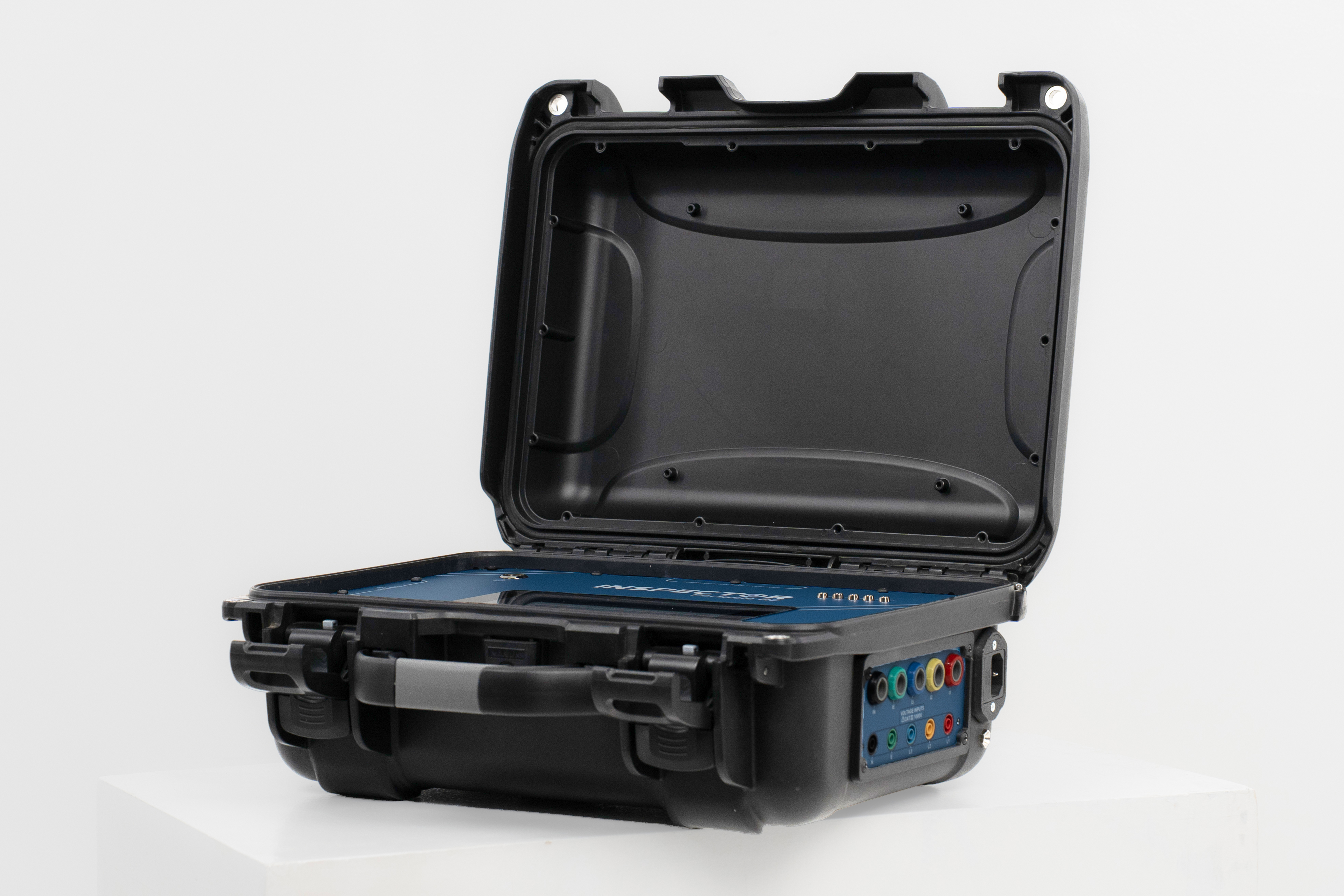

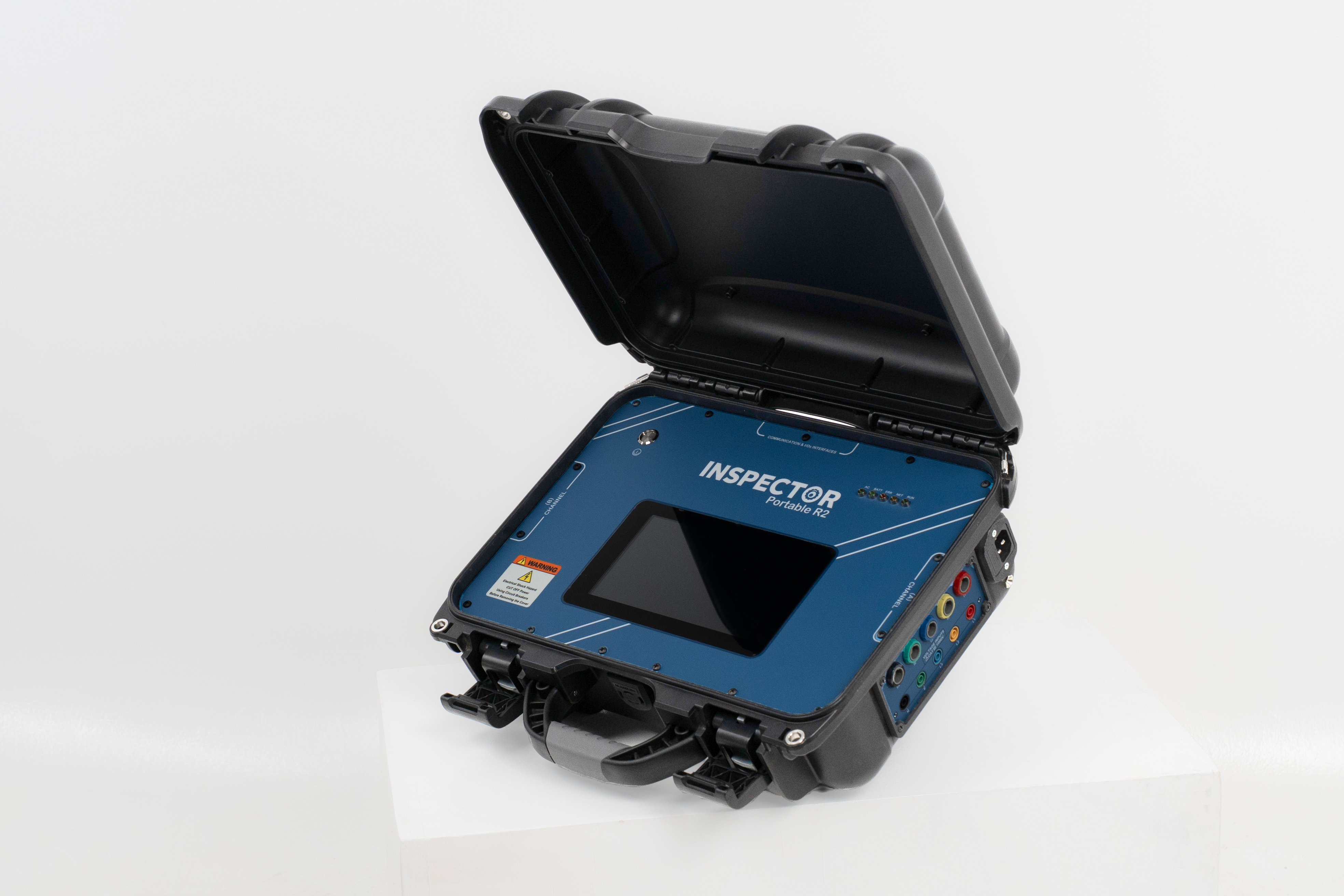

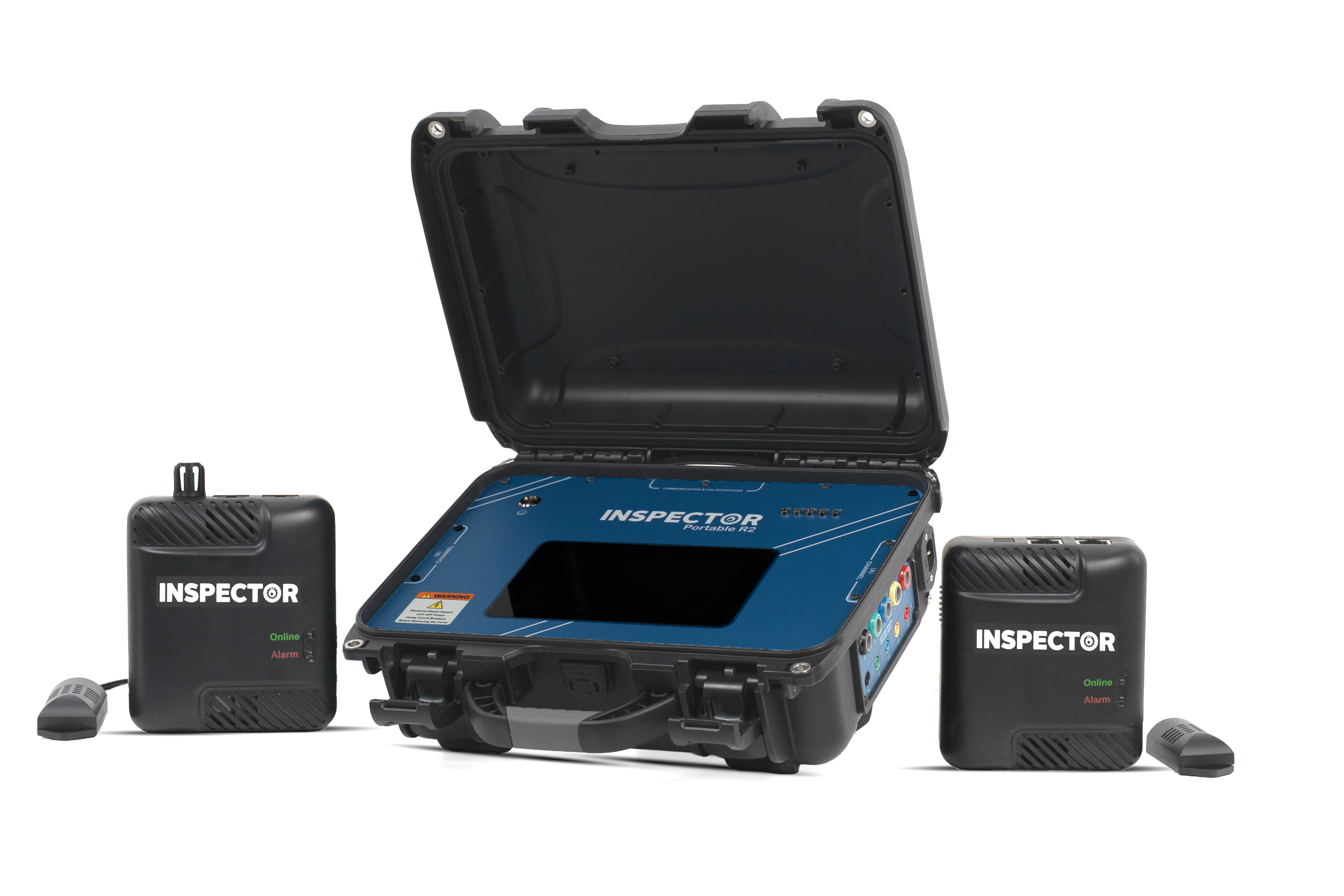

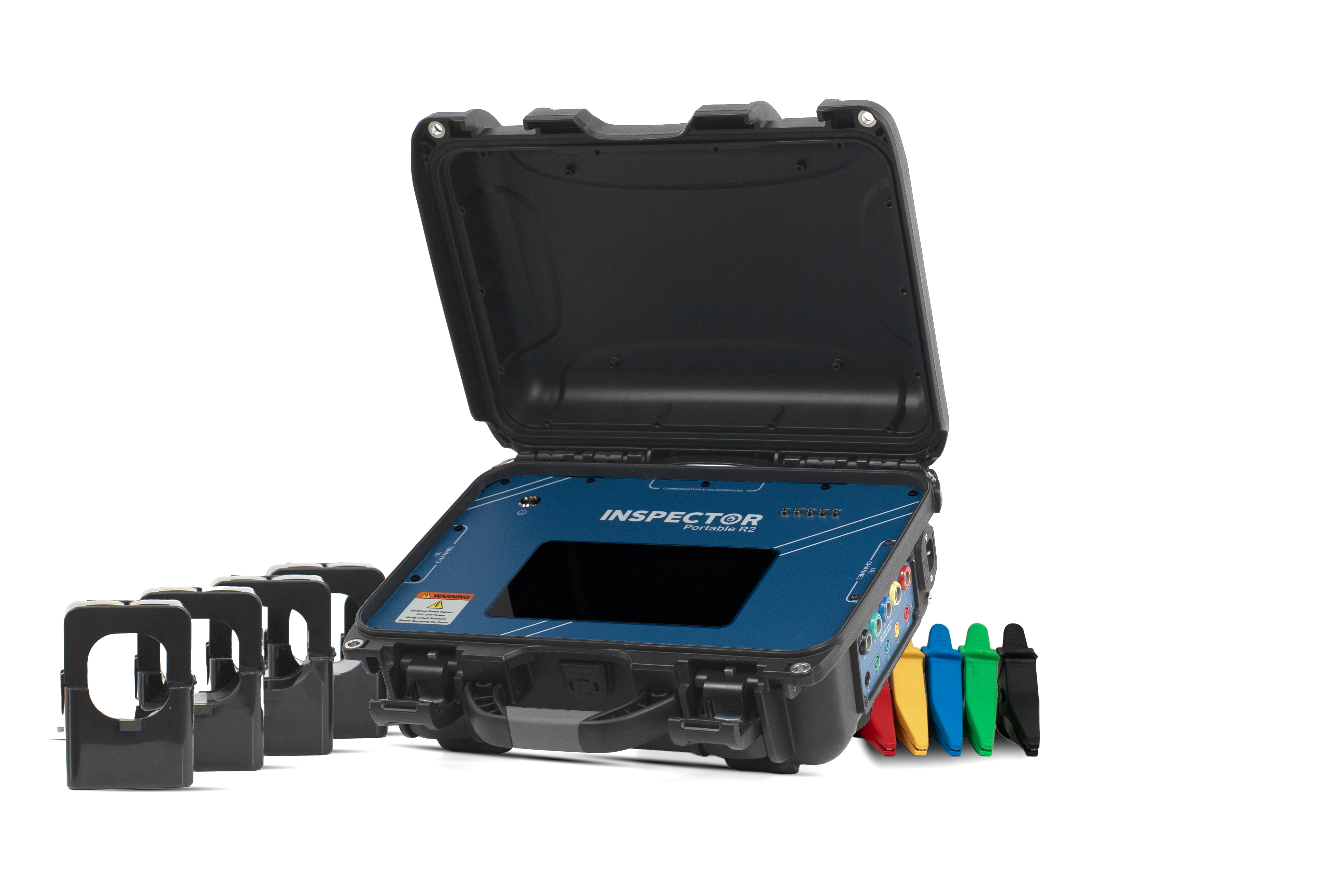

Portable Inspector V4
The same instrument in a rugged case. A two-week survey produces evidence of exactly the same grade as a permanent installation.
- 7″ touchscreen
- Same ±0.5% accuracy
- 6-hour battery
- Project reporting
Panel Mount — Standard
AC and DC power quality inside the panel. For solar, battery storage, EV charging and DC distribution, with outputs that can act, not just report.
- 630 V DC channel
- 2 relay outputs
- 3.16″ touchscreen
- 0–60 °C

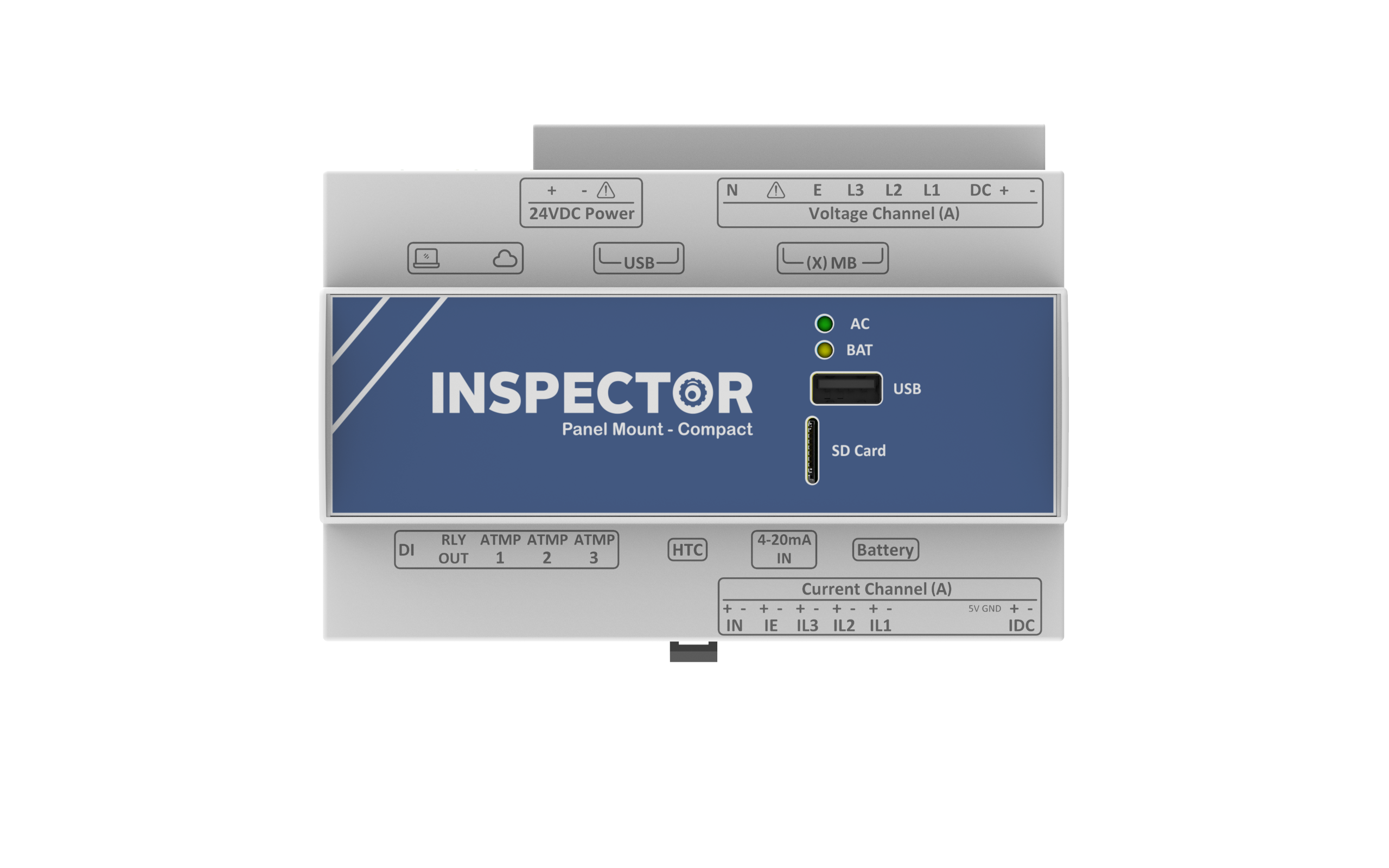

Panel Mount — Compact
The same measurement board without a screen, fed 24 V from the panel it sits in. The one to specify when you are fitting many.
- AC + DC channels
- Digital in / relay out
- 24 V DC
- Optional battery
Panel Mount — Lite
Environmental monitoring at volume. Temperature, humidity, air quality and vibration for server rooms, stores and warehouses.
- Temperature
- Humidity
- Air quality
- Vibration
Compare
The differences that decide the specification.
| Inspector V4 | Portable V4 | Panel — Standard | Panel — Compact | Panel — Lite | |
|---|---|---|---|---|---|
| AC power quality | 2 isolated channels | 2 isolated channels | 2 channels (2nd optional) | 2 channels (2nd optional) | — |
| Voltage range | 0–1000 VRMS | 0–1000 VRMS | 0–630 VRMS | 0–630 VRMS | — |
| DC power quality | — | — | 1 channel, 0–630 VDC | 1 channel, 0–630 VDC | — |
| Sampling | 32 kS/s, 24-bit | 32 kS/s, 24-bit | 32 kS/s AC · 125 kS/s DC | 32 kS/s AC · 125 kS/s DC | — |
| Earth resistance & current | Built in | Built in | Optional module | Optional module | — |
| Display | —(HDMI out) | 7″ touchscreen | 3.16″ touchscreen | — | — |
| Powering | 90–264 V AC | 90–264 V AC | 90–264 V AC | 24 V DC external | 24 V DC external |
| Battery backup | Built in, 6 h | Built in, 6 h | Optional, 3 h | Optional, 3 h | Optional, 3 h |
| RS-485 ports | 6 | 6 | 2 | 2 | 2 |
| Digital in / relay out | — | — | 2 / 2 | 2 / 2 | 2 / 2 |
| ATMP / HTC inputs | 3 / 2 | 3 / 2 | 3 / 3 | 3 / 1 | 3 / 1 |
| Operating range | 0–50 °C | 0–50 °C | 0–60 °C | 0–60 °C | 0–60 °C |
| Medical-grade power supply (IEC 60601-1) | Yes | Yes | Yes | — | — |
All five models share the same quad-core processor, 16 GB storage expandable to 256 GB, dual Gigabit Ethernet, and the same protocol set: HTTP/HTTPS, Modbus, BACnet, DNP3, IEC 61850, MQTT, SNMP, IEC 62056 and email. Event detection follows IEC 61000-4-30 throughout, with five cycles captured before and after every event.
Shared by every model
The engineering does not change with the enclosure.
Quad-core ARM
Cortex-A72 at 1.5 GHz, 16 GB storage expandable to 256 GB, dual Gigabit Ethernet.
Nine protocols
HTTP/HTTPS, Modbus, BACnet, DNP3, IEC 61850, MQTT, SNMP, IEC 62056 and email.
One sensor family
ATMP, HTC, THPAQ air quality and vibration, MMU motor current, SIB 4–20 mA, SMU sulphur.
IEC-class events
IEC 61000-4-30 classification with five cycles captured before and after each event.
Power analyzer or power quality analyzer?
A power analyzer measures how much. A power quality analyzer records what went wrong.
Both measure voltage, current and power. The difference is what happens between the averages: a power quality analyzer watches every cycle for disturbances, classifies them, and keeps the waveform as evidence.
| Power analyzer / energy logger | Power quality analyzer | |
|---|---|---|
| What it answers | How much power and energy is used, and how efficiently | Whether the supply stays within limits, and what happened when equipment tripped or failed |
| Typical readings | Voltage, current, kW, kVAR, kVA, power factor, kWh | All of those, plus dips, swells, interruptions, transients, harmonics, interharmonics, flicker and unbalance |
| How it records | Averages over fixed intervals | Continuously, with events detected and classified by IEC 61000-4-30 methods and the waveform captured around each one |
| Judged against | Energy and efficiency targets | EN 50160, IEEE 519, IEEE 1159, the ITIC and SEMI F47 curves |
| Use it for | Energy audits, sub-metering, efficiency projects | Unexplained trips, failed electronics, harmonic problems, UPS and generator checks, supply compliance |
Every Inspector except the Panel Mount Lite is a power quality analyzer: events are classified by IEC 61000-4-30 methods and each one stores five cycles before and after. Read how the limits work in EN 50160, IEEE 519 and voltage dips and sags.
Price
How much does a power quality analyzer cost?
Three-phase power quality analyzers from the major brands typically sell for about US$8,000 to US$16,000 through US resellers, and flagship recorders go above US$20,000 (reseller listings checked October 2026). The instrument is only part of the cost: current probes, analysis software, annual calibration and the engineering time to install and remove it for every campaign often decide the total. See the full price breakdown.
Inspector is quoted per project, because the price depends on the model, the number of measurement points, the sensors and clamps, and whether you want the cloud dashboard and alerts. Tell an engineer what you need to measure and you get a quote for exactly that configuration.
Available in Egypt
Buy your power quality analyzer direct from the manufacturer in Egypt.
Inspector is designed and built by PowerWadi in Sheikh Zayed, Giza. Hospitals, factories and data centres in Egypt buy directly from the manufacturer: an engineer in the same time zone helps choose the model and sensors, and quotes the configuration. Call +20 100 630 0862 or email contactus@powerwadi.com.
Outside Egypt, Inspector is supplied directly or through distribution partners in more than 30 countries.
Questions
Power quality analyzer FAQ
What is a power quality analyzer?
An instrument that records whether the electricity supplied to equipment stays within limits, and what happened when it did not. Besides voltage, current, power and power factor, it detects and classifies dips, swells, interruptions, transients, harmonics, flicker and unbalance, and captures the waveform around each event.
What is the difference between a power analyzer and a power quality analyzer?
A power analyzer (or energy logger) measures how much power and energy is used and how efficiently. A power quality analyzer also records disturbances on the supply — dips, transients, harmonics, flicker — and the waveform when they happen, so it can explain trips and failures. See the comparison.
How much does a power quality analyzer cost?
Three-phase analyzers from the major brands typically sell for about US$8,000 to US$16,000 through US resellers, and flagship recorders go above US$20,000 (listings checked October 2026). Probes, software, calibration and engineering time add to that. Inspector is quoted per project. Read the full price guide.
Which Inspector model do I need?
Inspector V4 for permanent 24/7 monitoring of one critical asset; the Portable Inspector V4 for surveys and audits; Panel Mount Standard or Compact when you also need DC; Panel Mount Lite for environmental monitoring only. Or answer three questions in the model selector.
Can Inspector measure DC power quality?
Yes, the Panel Mount Standard and Compact have a DC channel (0–630 V DC, sampled at 125 kSPS) for solar, battery storage, EV charging and DC distribution. Inspector V4 and the Portable measure AC.
Should I use a portable analyzer or a permanent monitor?
A portable analyzer only sees what happens while it is connected; a permanent monitor catches the event that happens next month. How to choose.
Is Inspector available in Egypt?
Yes. Inspector is designed and built by PowerWadi in Sheikh Zayed, Giza, and Egyptian customers buy directly from the manufacturer. It is also supplied in more than 30 countries, directly or through distribution partners.
Certified & compliant
Built in Egypt. Deployed worldwide.
Over 4,000 critical assets, in more than 30 countries.
Inspector is installed by hospital groups, manufacturers and equipment vendors across the Middle East, Africa, Europe and Asia — and shipped through distributors who wanted something their competitors could not quote against.
- Distributor margins on a product with no local equivalent in most markets
- Export documentation ready— UL, TÜV Rheinland, CE, RoHS, WEEE and REACH
- Medical-grade power supply certified to IEC 60601-1 for hospital sales
- White-label and OEM arrangements for equipment vendors
- Engineering support in your timezone, in English and Arabic
Get the full specifications.
Every model’s datasheet — measurement ranges, accuracies, package contents and accessories — as PowerWadi publishes them.
