IEC 61000-4-30 Class AInspector V4 3 Phase Power Quality Analyzer
Inspector V4 is a continuous power-quality and site-condition monitor for industrial facilities, medical systems, data centers, telecom and building infrastructure. It combines dual isolated PQ channels with high-resolution ADCs, wide I/O and protocol support, on-device storage with battery backup, and expansion units for environmental, motor and analog sensors.
Inspector V4 - Power Quality Analyzer and Continuous 3-Phase Monitor
The Inspector V4 is a professional-grade power quality analyzer and continuous 3-phase power monitor designed for industrial facilities data centers medical systems and building infrastructure. As a dual-channel power quality meter it simultaneously monitors two independent electrical systems — ideal for comparing utility supply against UPS output or monitoring two feeders at once.
This is not a field instrument you carry to a site and retrieve a week later. The Inspector V4 is a permanent power quality monitoring system — always-on; always-recording; and always-communicating. It captures every voltage dip-swell-transient and harmonic disturbance per IEC 61000-4-30 Class A. As a continuous electrical data logger. it stores all data across 16GB flash plus 32GB SD (expandable to 256GB) with a 6-hour Li-ion battery ensuring the power quality data logger never misses a single event — not even the ones caused by the outage itself.
Power Quality Capabilities
- RMS V/I—0–1000V 0–1000A ±0.5% / ±2% accuracy
- Active, Reactive & Apparent Power—P, Q, S per phase & total
- THD & Harmonics—Full spectrum + interharmonics
- Voltage Flicker—Pst and Plt per IEC standards
- Voltage Unbalance & K-Factor—Full phase analysis
- Event Detection—Dips, swells, interruptions, transients, inrush
- Event Capture—±5 cycles pre/post at 32 kS/s per input
- Energy Measurement—kWh, kVArh, kVAh all phases
3-Phase Configurations & Protocol Integration
- 1P2W / 3P3W Delta / 3P4W StarAll standard wiring topologies
- Modbus, BACnet, IEC 61850SCADA & BMS integration
- DNP3Utility substation communication
- MQTT, SNMPIoT & cloud platforms
- Environmental ExpansionCO₂, TVOC, vibration, H₂S, SO₂
- Motor Monitoring (MMU)Non-invasive CTs up to 100A
Built for Continuous Infrastructure Monitoring
Designed for permanent infrastructure monitoring and operational response.
Inspector V4 is built for continuous site ownership.
Portable analyzers can support short surveys. Inspector V4 is intended for always-on deployment, uninterrupted recording, and proactive alerting.
Request a quotation for permanent monitoring.
Frequently Asked Questions
Everything you need to know about the Inspector V4 — what it does, how it works, and who it's built for.
Most power quality instruments are designed to be carried to a site, used for a week-long campaign, then retrieved. Inspector V4 is permanent infrastructure — installed once, recording 24/7, sending live data to your systems, and alerting your team instantly when something goes wrong. It doesn't need an engineer on-site. It monitors your facility whether anyone is there or not.

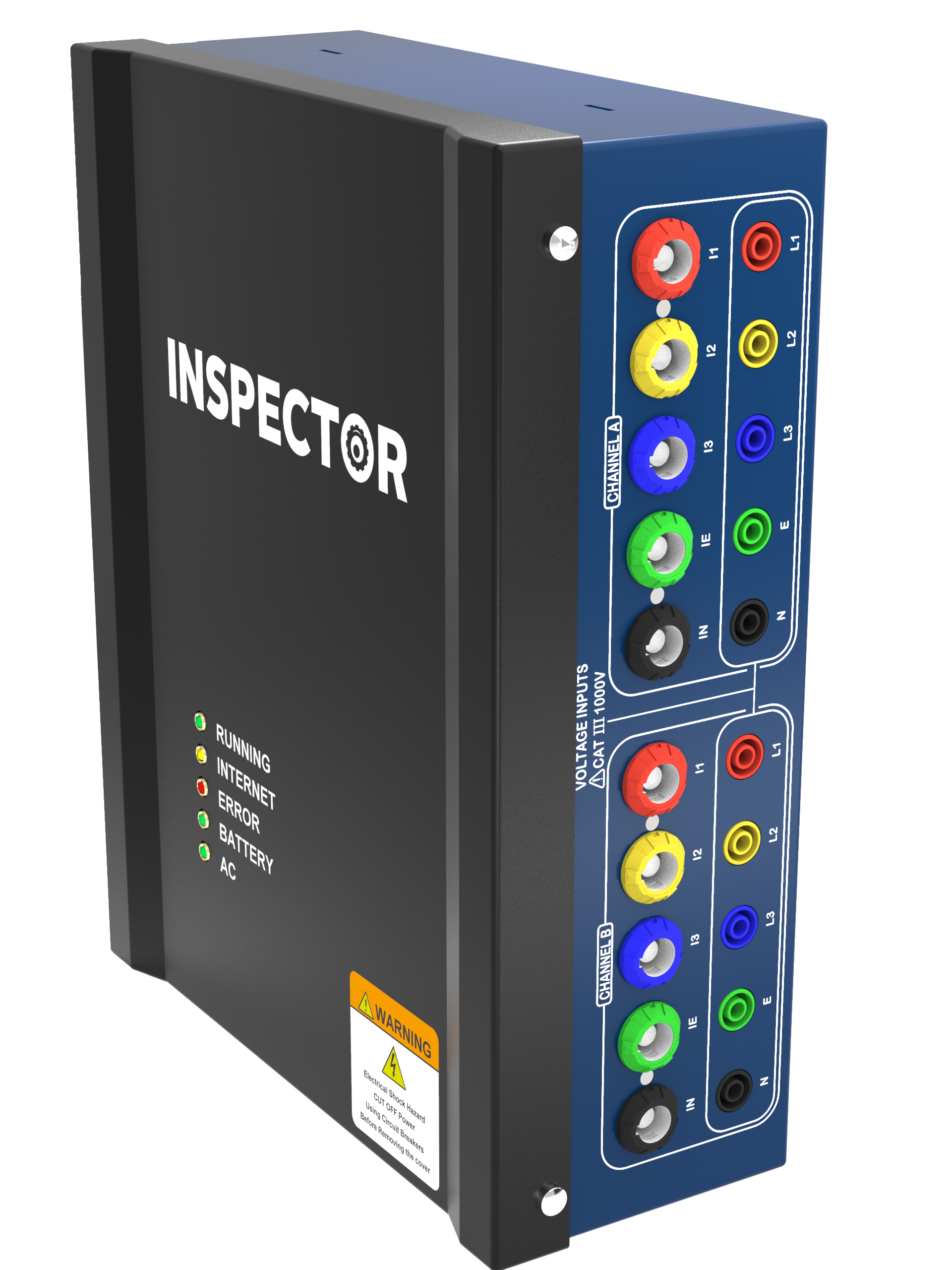

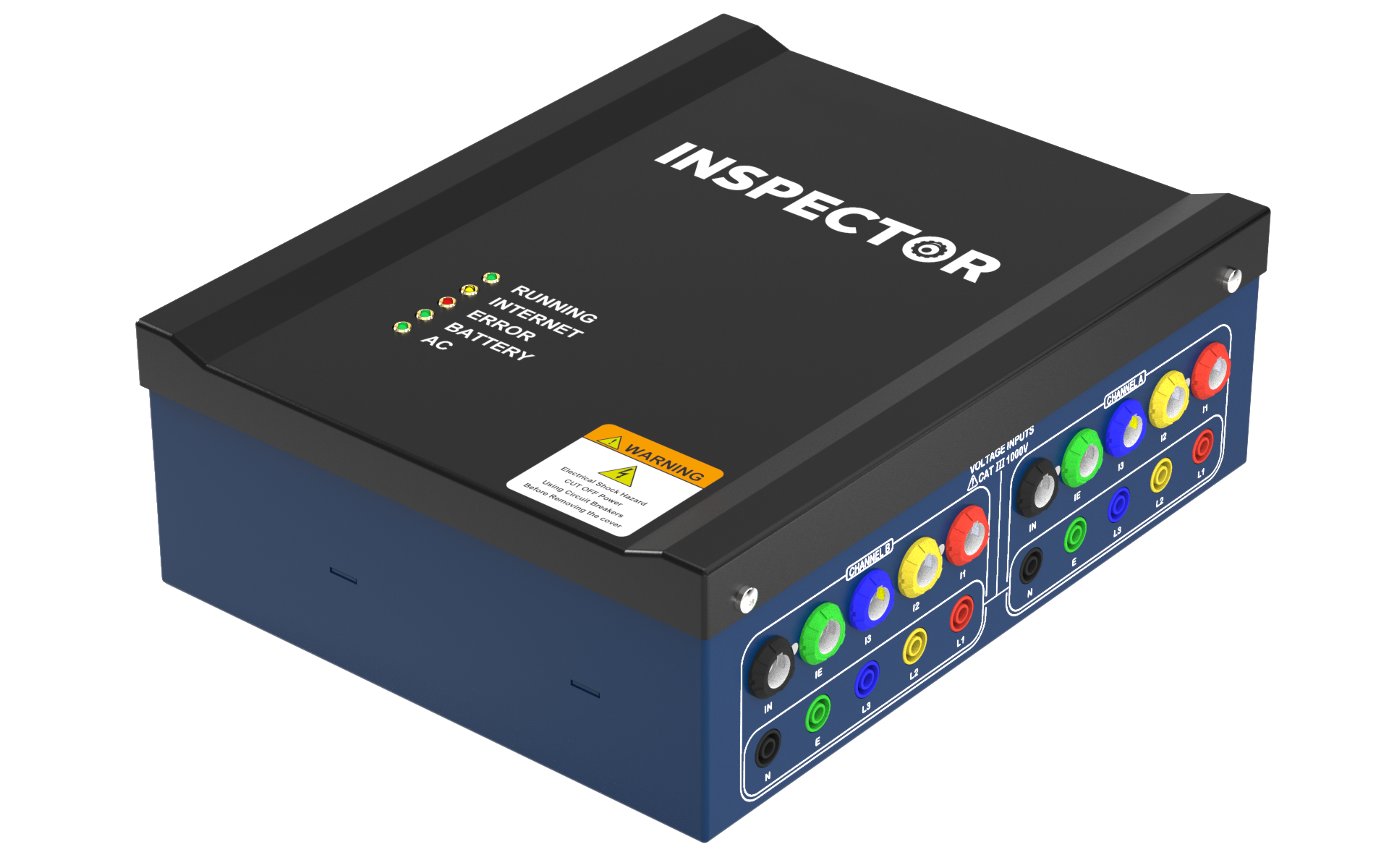

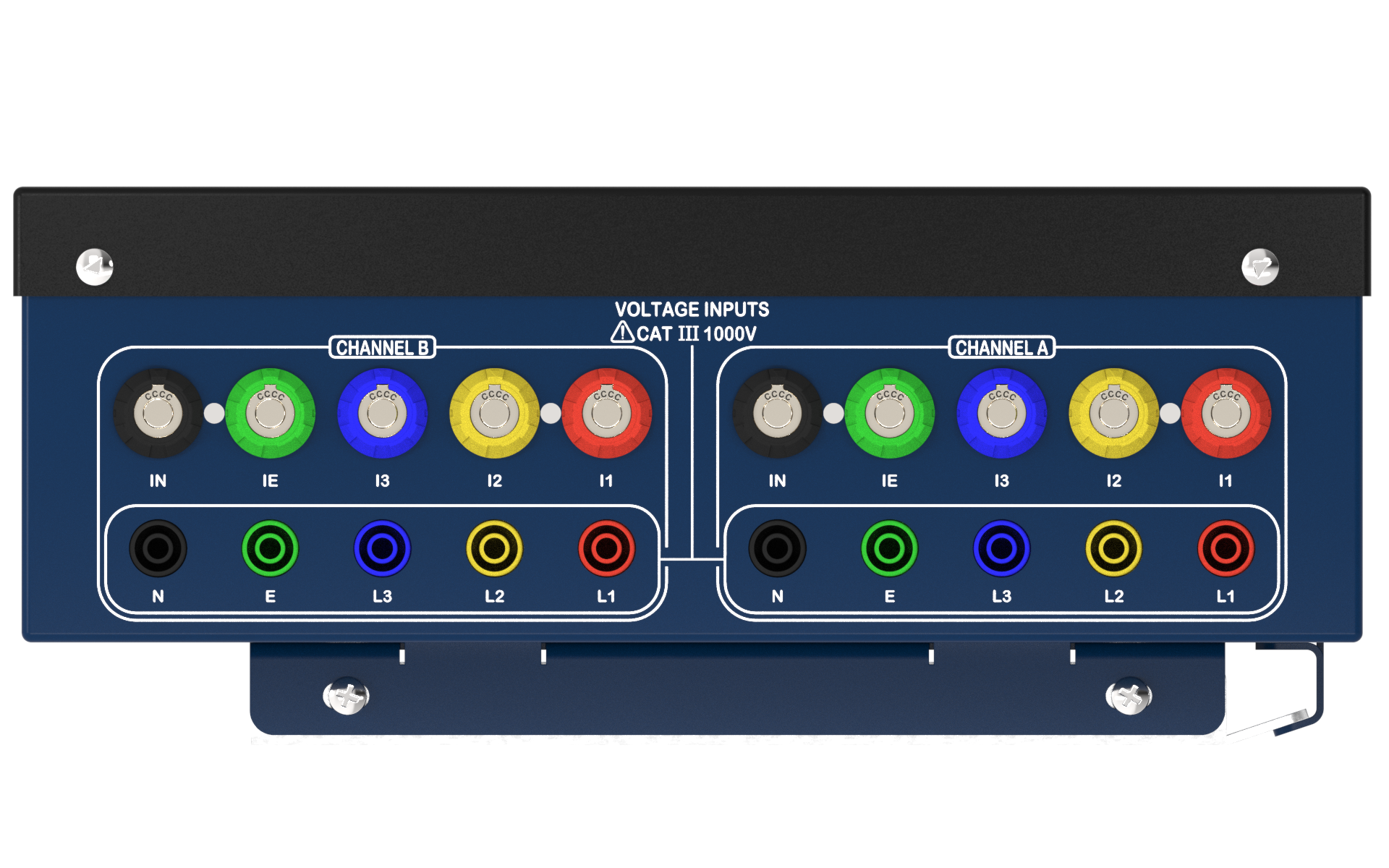

Yes. It supports 1P2W, 3P3W Delta, and 3P4W Star configurations. Uniquely, it carries two fully isolated 3-phase channels — each with 5 voltage and 5 current inputs — allowing it to monitor two independent electrical systems simultaneously. Compare utility supply against UPS output, or watch two feeders at once. No other permanently-installed PQ analyzer in its class offers this.
IEC 61000-4-30 Class A is the highest accuracy class for power quality measurement — required for regulatory compliance, contractual PQ reporting, and legal disputes. Inspector V4 is fully Class A certified across all parameters and, critically, maintains that accuracy through power outages via its 6-hour Li-ion battery backup. It records the event that caused the outage, not just the aftermath.
Inspector V4 logs continuously to 16GB internal flash plus an SD card expandable to 256GB — enough for years of full-resolution data without ever needing to be retrieved or redeployed. It pushes data to your platform in real time and keeps recording indefinitely. There is no "end of campaign" — only continuous, uninterrupted site intelligence.
Yes — and this is one of its defining capabilities. Via expansion modules it monitors temperature, humidity, CO₂, TVOC, particulates, and 3-axis vibration (THPAQ), motor health via non-invasive CTs (MMU), up to 8× 4–20mA analog sensors (SIB), and H₂S/SO₂ toxic gas (SMU). A single Inspector V4 installation consolidates what would otherwise require multiple separate devices from multiple vendors.
Yes — natively, with no middleware. Inspector V4 supports 9 industrial protocols built-in: Modbus, BACnet, IEC 61850, DNP3, MQTT, SNMP, HTTP/HTTPS, IEC 62056, and Email. It connects directly to your existing SCADA system, building management platform, or IoT cloud infrastructure — live, continuously, without any third-party gateways or additional hardware.
